UADS-ZG33
• Full-Spectrum Drone Defense System
• Integrated Detection & Countermeasure: Combines radio detection and countermeasure capabilities into one system, enabling the seamless detection, identification, and jamming of drones.
• Extensive Drone Coverage: Capable of detecting, identifying, and jamming over 95% of market drones, including popular models like DJI, WiFi, and FPV drones.
• Automatic Jamming Activation: Once the system detects drone activity and confirms the target via the identification module, the jamming module is automatically triggered.
• Multi-Target Capability: Supports simultaneous detection, identification, and countermeasure of multiple drones, providing real-time tracking and jamming of several targets.
• 24/7 Autonomous Operation: Can operate automatically around the clock, executing detection and countermeasure plans without human intervention, and is unaffected by harsh weather conditions.
• 360° Omnidirectional Jamming: Offers complete jamming coverage across all directions.
• Comprehensive Jamming Links: Disrupts drone satellite navigation, wireless telemetry, and video transmission links to ensure complete neutralization.

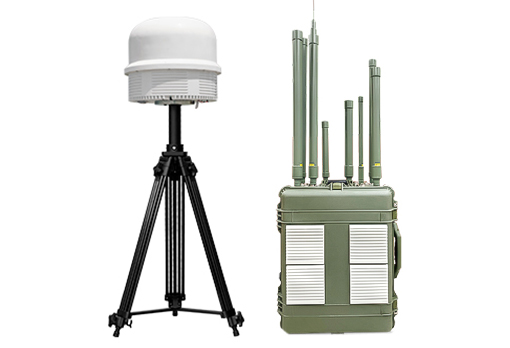

SZMID - UADS-ZG33: Comprehensive Full-Spectrum Drone Defense System
The SZMID - UADS-ZG33 is a cutting-edge full-spectrum drone defense system that seamlessly integrates drone detection and countermeasure functionalities in a single unit. Designed to detect, identify, and neutralize drones in flight, the UADS-ZG33 offers unparalleled protection for low-altitude airspace, preventing unauthorized drone incursions into secure zones. With its advanced technology, the system can cause drones to hover in place, initiate a forced landing, or return to their point of origin. It operates autonomously, with no need for manual supervision, ensuring continuous 24/7 airspace security.
The UADS-ZG33 leverages a unified design that combines radio detection and jamming capabilities. This allows the system to simultaneously identify and counter drones with high precision. Capable of detecting and interfering with over 95% of commercial drones on the market, including popular models such as DJI, WiFi drones, and FPV drones, the system provides reliable performance across a wide range of drone types. Upon detecting drone activity through its detection module and confirming the target via its identification module, the system automatically activates its jamming module to neutralize the threat.
One of the key strengths of the UADS-ZG33 is its ability to handle multiple targets simultaneously. It supports real-time detection and identification of multiple drones, displaying the trajectory of each target and executing countermeasures against several drones at once. This multi-target capability ensures comprehensive defense in complex airspace environments.
Built for continuous, unattended operation, the UADS-ZG33 can function in all weather conditions, from extreme heat to severe storms, without performance degradation. The system's 360° omnidirectional jamming ensures full coverage, disrupting critical communication links such as satellite navigation, wireless telemetry, and video transmission. This comprehensive approach guarantees that no drone can operate within the protected airspace, making the UADS-ZG33 a powerful and reliable solution for drone defense.
| Product Model | UADS-ZG33 Full-Spectrum Drone Defense System |
| Detection Frequency | 20MHz-6GHz |
| Detection Radius | ≥5km |
| Identification Radius | ≥5km, capable of identifying drone brand and model |
| Detection Angle | 360° |
| Detection Angle Accuracy (RMS) | Distance ≥5km, ≤1° |
| Drone Radio Interception Response Time | ≤2s |
| Minimum Detection Height | ≤0m |
| Detection Success Rate | ≥99% |
| Simultaneous Drone Detection | ≥60 drones |
| Detectable Protocols | LightBridge1, LightBridge2, Ocusync, WIFI and WIFI variant protocols |
| Detection of Non-Database Rogue Drones | Capable |
| False Alarm Rate Requirement | Continuous detection for 2 hours with less than 1 false alarm per hour in the absence of drones within the detection range |
| Protection Level | ≥IP66 |
| Log Storage | ≥5 years |
| Host Weight | ≤12kg |
| Jamming Technical Parameters | |
| Parameter | Specification |
| Jamming Frequency | 20MHz-6GHz |
| Jamming Radius | Open area ≤3KM, urban environment ≤1KM (depending on model and environment) |
| Jamming Links | ① Satellite navigation link ② Drone wireless telemetry link ③ Drone wireless video transmission link |
| Antenna | High-gain omnidirectional antenna |
| Jamming Mode | Fixed frequency jamming |
| Jamming Frequency and Power Allocation | 2390MHz-2510MHz, 5708MHz-5872MHz, 1552MHz-1632MHz, 900MHz |
| Host Weight | ≤60kg |
| Host Dimensions | 63×50×35cm |
| Power Consumption | 1500W |
| Operating Temperature | -25~+55°C |
| Operating Humidity | 80%±3 |
