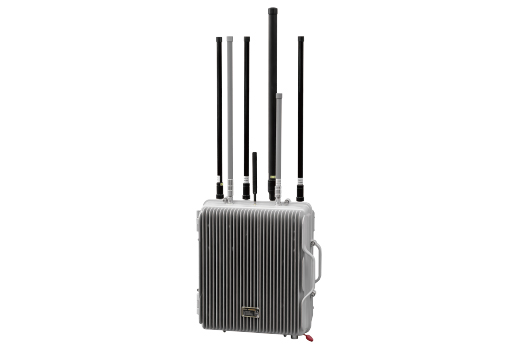

UADS-ZG12Plus
• Drone Defense Systems
– Utilizes secondary frequency conversion and intermediate frequency digital processing technology, blending traditional analog and modern digital receiver advantages.
– Capable of detecting 90% of drone models on the market, with automatic jamming triggered after drone detection and identification.
– High detection sensitivity, covering over 75% of a drone’s image transmission distance with a 6dBi antenna and over 60% with a 3dBi antenna, depending on the scenario.
– Equipped with an RF front end and professional limiter, ensuring safe operation near jamming equipment without risk of damage.
– Features an extremely low false alarm rate, especially effective in complex electromagnetic environments compared to spectrum feature-based systems.
– Provides 360° omnidirectional jamming, covering satellite navigation, wireless telemetry, and wireless image transmission links.
SZMID - UADS-ZG12Plus Drone Defense System: Comprehensive Protection for Low-Altitude Airspace
The SZMID UADS-ZG12Plus is an advanced drone detection and countermeasure system designed to provide full-spectrum protection against unauthorized UAV incursions. By integrating both detection and countermeasure capabilities into a seamless, automated operation, this system excels in identifying drones in flight, then engaging defensive measures to either force them to hover, land, or return to their point of origin. This ensures that drones do not penetrate critical airspace, offering robust security with minimal human intervention.
The system features state-of-the-art secondary frequency conversion and intermediate frequency (IF) digital processing technology. This combination leverages the strengths of traditional analog receivers alongside the precision of modern digital receivers. The detection models are designed to cover approximately 90% of drones on the market, offering comprehensive UAV identification and interception.
Once the detection module confirms the presence of a drone, the recognition system verifies the target and triggers the jamming module, which effectively disrupts the drone's control and communication links. With high sensitivity, the detection range typically exceeds 75% of the drone’s mapping distance when using a 6dBi antenna, and more than 60% with a 3dBi antenna, depending on the environmental conditions.
The RF front-end is equipped with a professional-grade limiter, allowing the system to operate reliably even in proximity to jamming signals without risk of damage. Additionally, its low false alarm rate stands out in complex electromagnetic environments, outperforming systems that rely solely on spectral feature comparisons.
The UADS-ZG12Plus provides 360° omnidirectional jamming capability, targeting three critical UAV links: satellite navigation, wireless telemetry, and wireless video mapping. With this system in place, organizations can maintain secure low-altitude airspace with long-range detection and interference capabilities, without the need for constant personnel supervision.
This all-in-one, automatic detection and jamming system ensures top-tier performance for safeguarding sensitive areas.
| Model | UADS-ZG12Plus Anti Drone System |
| Detection Technical Parameters | |
| Detection Frequency | 24002500MHz, 51505850MHz |
| Detection Radius | 1km (2dBi antenna / DJI Phantom 4 Pro V2.0 / 50m height), 3km (8dBi antenna / DJI Phantom 4 Pro V2.0 / 100m height) |
| Scanning Cycle | 2.1~5.25 seconds adjustable |
| False Alarm Rate | ≤1 time/24 hours in complex urban electromagnetic environments |
| Alert Delay | 1.5s in all frequency bands |
| Jamming Technical Parameters | |
| Jamming Frequency | 5.8G\2.4G\1.5G\0.9G\1.2G\5.1G |
| Jamming Radius | ≤3KM in open areas, ≤1KM in urban environments (depending on model and environment) |
| Jamming Links | ① Satellite Navigation Link ② Drone Wireless Telemetry Link ③ Drone Wireless Image Transmission Link |
| Antenna | High-gain omnidirectional antenna |
| Jamming Mode | Fixed frequency jamming |
| Jamming Frequency Division and Transmit Power | |
| Frequency Range (customizable) | 1.2GHz, 5.1GHz, 2.4GHz, 5.8GHz, 1.5GHz, 900MHz |
| Transmit Power | 30W (1.2GHz), 20W (5.1GHz), 100W (2.4GHz), 100W (5.8GHz), 30W (1.5GHz), 100W (900MHz) |
| Main Equipment Parameters | |
| Main Equipment Weight | ≤30kg |
| Main Equipment Dimensions | 500x440x235mm (excluding antenna) |
| Power Supply Voltage | AC220V |
| Power Consumption | ≤2000W |
| Operating Temperature | -30~+70°C (refer to "derating curve") |
| Operating Humidity | 20~90%RH non-condensing |
