UADS-ZG12
• Counter Unmanned Aircraft System
• Advanced Signal Processing: Utilizes secondary frequency conversion and intermediate frequency digital processing, combining the benefits of both traditional analog and modern digital receivers.
• Comprehensive Drone Coverage: Detects and neutralizes approximately 95% of drone models currently on the market. Automatically activates jamming functions once drone activity is identified.
• High Sensitivity Detection: Achieves detection distances of over 70% of the drone’s transmission range with a 6dBi antenna, and over 55% with a 3dBi antenna, depending on usage scenarios.
• Robust RF Front-End: Features a professional limiter to protect against damage, even when operating near active jammers.
• Low False Alarm Rate: Offers superior performance in complex electromagnetic environments, with a significantly reduced false alarm rate compared to systems using spectral feature matching.
• Collaborative Detection: In synchronous mode, multiple units can work together to enable direction-finding capabilities via a central data processing unit.
• Expandable Interfaces: Equipped with interfaces for integration with Identification Friend or Foe (IFF) systems to differentiate between friendly and enemy drones.
• 360° Jamming Coverage: Provides omnidirectional jamming across critical drone communication channels, including satellite navigation, telemetry, and image transmission links.

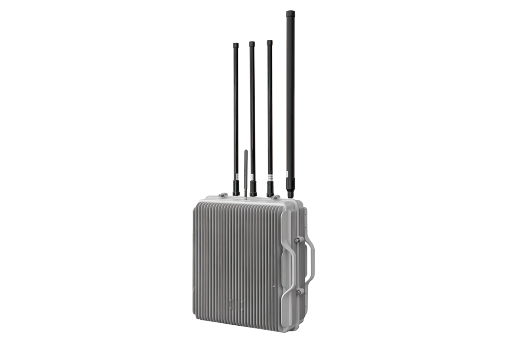

SZMID - UADS-ZG12: Advanced Counter Unmanned Aircraft System for Comprehensive Drone Defense
The SZMID - UADS-ZG12 is a highly integrated counter-drone system that seamlessly combines detection and mitigation capabilities. Designed for real-time drone monitoring and neutralization, it detects drones in flight and takes immediate countermeasures, effectively preventing unauthorized drone entry into restricted airspace. The system offers multiple defensive responses, including hovering disruption, forced landings, or returning drones to their takeoff point, ensuring the safety of low-altitude airspace. Its autonomous operation minimizes the need for manual intervention, automatically activating detection and countermeasure protocols based on configuration settings.
Leveraging secondary frequency conversion and intermediate frequency (IF) digital processing technology, the UADS-ZG12 system combines the strengths of both traditional analog receivers and modern digital receivers. This hybrid design ensures optimal detection accuracy and jamming effectiveness, covering 95% of drones available on the market. Once the detection module identifies drone activity, the system uses its recognition module to confirm the target, subsequently triggering the jamming module. Equipped with high sensitivity, the system can detect drones at distances exceeding 70% of their transmission range when using a 6dBi antenna, and over 55% when using a 3dBi antenna, depending on the specific operational environment.
The RF front-end is equipped with a professional-grade limiter, enabling the system to function without damage even in close proximity to active jammers. Moreover, the UADS-ZG12 boasts an exceptionally low false alarm rate, particularly in complex electromagnetic environments. This performance is superior to systems that rely on spectral feature matching, which are prone to higher rates of false positives.
In synchronized mode, multiple UADS-ZG12 units can work together, coordinating through a central data processing unit to enable accurate direction-finding capabilities. The system is also equipped with expansion interfaces that allow it to connect to Identification Friend or Foe (IFF) systems, providing an additional layer of security by distinguishing between friendly and hostile drones.
For countermeasures, the system employs a 360° omnidirectional jamming mode that disrupts key communication links used by drones. This includes jamming satellite navigation, wireless telemetry, and wireless image transmission, ensuring comprehensive protection against unauthorized drone operations.
Model | UADS-ZG12 Drone Defense System |
Detection Frequency | 24002500MHz, 51505850MHz |
Detection Radius | 1.5km (2dBi antenna / DJI Phantom 4 Pro V2.0 / 50m height), 3km (8dBi antenna / DJI Phantom 4 Pro V2.0 / 100m height) |
Scanning Cycle | 2.1~5.25 seconds adjustable |
False Alarm Rate | ≤1 time/24 hours in complex urban electromagnetic environments |
Alert Delay | 1.5s in all frequency bands |
Jamming Technical Parameters | |
Parameter | Specification |
Jamming Frequency | 5.8G\2.4G\1.5G\0.9G |
Jamming Radius | ≤3KM in open areas, ≤1KM in urban environments (depending on model and environment) |
Jamming Links | ① Satellite Navigation Link ② Drone Wireless Telemetry Link ③ Drone Wireless Image Transmission Link |
Antenna | High-gain omnidirectional antenna |
Jamming Mode | Fixed frequency jamming |
Jamming Frequency Division and Transmit Power | |
Frequency Range (customizable) | Transmit Power |
2390MHz-2510MHz | 100W |
5708MHz-5872MHz | 100W |
1552MHz-1632MHz | 30W |
900MHz | 100W |
Main Equipment Parameters | |
Parameter | Specification |
Main Equipment Weight | ≤30kg |
Main Equipment Dimensions | 500x440x235mm (excluding antenna) |
Power Supply Voltage | AC220V |
Power Consumption | ≤1600W |
Operating Temperature | -30~+70°C (refer to "derating curve") |
Operating Humidity | 20~90%RH non-condensing |
