UADS-PZG03
• Drone Defense System
• Operates 24/7 with high reliability and fully autonomous capabilities, including remote control and telemetry functions.
• Utilizes full digital active phased array technology for precise signal transmission and reception, employing advanced DBF technology.
• Features adaptive dynamic target detection and Doppler clutter suppression for enhanced tracking accuracy in dynamic environments.
• Equipped with high-stability tracking technology for mobile targets, ensuring consistent performance.
• Supports fully automatic data admission and reporting, streamlining operational monitoring.
• Capable of target classification and discrimination, improving threat identification.
• Includes standard intelligence interface formats, network deployment options, and data fusion capabilities for seamless integration with broader defense networks.

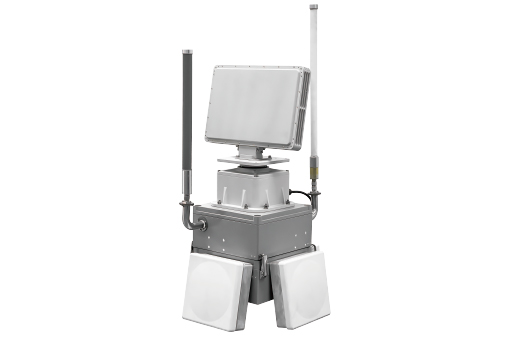

SZMID UADS-PZG03 – Comprehensive UAV Stereo Defense System
The SZMID UADS-PZG03 is a cutting-edge UAV defense system designed to provide a multi-layered approach to drone detection and neutralization. The system is composed of four primary components: a detection and control unit, an electromagnetic interference unit, a support frame, and a charge unit. These modular units are designed for seamless integration, with detection and control units stacking easily onto the support frame alongside the interference units. The charge unit can operate as a standalone station or in tandem with multiple units for enhanced operational coverage.
The UADS-PZG03 provides a comprehensive defense solution, featuring multiple detection zones. The detection and early warning area extends from 2.0 to 4 kilometers, relying on spectrum detection to identify UAVs within a 4 km radius. This ensures excellent detection performance while maintaining operational stealth. In the detection and alarm area, the system combines radar and spectrum detection to monitor conventional and FPV-specialized UAVs within a 2.0 km radius. The alert area covers a 1000-meter radius, where the system employs decoy equipment to lure and neutralize intruding drones using crash landing, displacement, or other methods. The core defense zone spans a 600-meter radius around the system, where interference and decoy equipment immediately force drones to hover or land, effectively preventing them from entering restricted airspace.
With its advanced control scheme, the UADS-PZG03 allows for the distribution and network deployment of multiple units, eliminating blind spots and ensuring comprehensive coverage. Designed for round-the-clock operation, the system boasts high reliability and can operate autonomously, featuring remote control and telemetry functions. The system incorporates full digital active phased array technology, adaptive dynamic target detection, Doppler clutter suppression, and high-stability mobile target tracking. These advanced technologies provide precise target detection, classification, and discrimination, enhancing the system's effectiveness against a wide range of UAV threats.
The UADS-PZG03 also offers superior integration capabilities, featuring standard intelligence interface formats, network deployment options, and data fusion functionality. Its highly integrated RF and digital design, paired with digital T/R technology, ensures electromagnetic compatibility, making it suitable for use in sensitive environments such as airports. Additionally, the system is designed for easy disassembly, transportation, setup, and maintenance, providing users with a convenient and efficient defense solution.
This advanced drone defense system is ideal for users requiring a highly reliable, modular, and scalable solution to detect and neutralize UAV threats in various operational scenarios.
UADS-PZG03 Drone Defense System | ||||
main performance | Domestic standard edition | Domestic high-end version | an international edition | |
System detection configuration | Radar working frequency band | Radar working band: 5400-5600 MHz (International Radio Union ISM) | ||
Spectrum detection frequency band | 2400~2500MHz 5150~5975MHz | The 20 MHz-6GHz full frequency band | ||
coverage | 3km (2 dBi antenna / elf 4 Pro V2.0/50m high) Black flying distance: 2km km, found (including fpv) all drones |
Identification distance: 5km km, can identify the brand and model of UAV Detection range: 7.5km km, discovery database UAV, with detection non-database communication protocol UAV Black flying distance: 2km km, found (including fpv black flying) all drones |
||
Probe success rate | 85% | 99% | ||
Protocol crack | not have | LightBridge1, LightBridge2; Ocusync; WIFI and WIFI variant | ||
To take over | The lure frequency | GPS-L1 | ||
To lure distance | 3KM | |||
Interference suppression | Interference frequency band | 1560-1620 MHz (navigation) | 1560-1620 MHz (navigation) | 840-868 MHz (flight control and map transfer) |
2400-2500 MHz (flight control and map transfer) | 2400-2500 MHz (flight control and map transfer) | 902-928 MHz (flight control and map transfer) | ||
5150-5850 MHz (flight control and map transfer) | 5150-5850 MHz (flight control and map transfer) | 1560-1620 MHz (navigation) | ||
- | - | 2400-2500 MHz (flight control and map transfer) | ||
- | - | 5150-5850 MHz (flight control and map transfer) | ||
coverage | 500M | 1000m | 500M | |
Dimensions (after deployment) | ≤1500mm×1500mm×2800mm | |||
weight | 25kg (equipment) | The weight of the whole system | ||
15kg (tripod) | External spectrum weight | |||
working temperature | -40℃~55℃ | |||
storage temperature | -45℃~65℃ | |||
levels of protection | Ip65 | |||
Working humidity | ≤ 95% | |||
data interface | RJ45 | |||
Power interface | Voltage: AC180V~250V | |||
Power: 100W (detection mode), 600W (counter mode) | ||||
Set up completion time | ≤15min | |||
pack | Two boxes | |||
Platform function | Real-time detection, alarm, automatic countermeasures, manual countermeasures, GIS map, data storage, event query |
