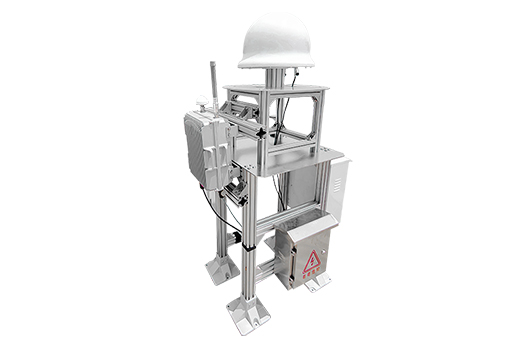

UADS-PZ04
• Unmanned Aerial Vehicle (UAV) Decoy Defense System
• Integrated Solution: Combines radio spectrum monitoring with drone navigation deception, counter UAV technology providing comprehensive detection and navigation interference for UAVs.
• Passive Detection Capability: Utilizes passive detection techniques to mislead, UAV identification and confuse drone navigation systems, effectively targeting 99% of commercial drones.
• 24/7 All-Weather Operation: Designed for continuous, autonomous operation in all weather conditions, requiring no human intervention.
• Omnidirectional Antenna: Equipped with an omnidirectional antenna offering full 360° coverage, ensuring no blind spots. Features a detection range of up to 4000 meters and a deception range of up to 2000 meters.
• Expandable System: Offers flexibility for future upgrades, including the addition of radio jamming functions. Capable of standalone or networked operation, it is adept at countering swarm saturation attacks with multiple countermeasures.
SZMID - UADS-PZ04: Advanced UAV Decoy Defense System for Secure Airspace Protection
The SZMID UADS-PZ04 is a cutting-edge UAV defense system specifically engineered to counter the various security threats posed by unauthorized drones, often referred to as "black fly" UAVs. This advanced Anti-drone system integrates radio spectrum monitoring with a sophisticated navigation decoy mechanism, offering a dual-function approach to UAV detection and interference. The radio spectrum monitoring system passively intercepts communication signals between the UAV and its remote control, enabling precise detection and identification of drones entering the protected area. Upon identification, the navigation decoy system is activated, emitting low-power regenerated navigation satellite signals (with a power output not exceeding 10 dBm). This process disrupts the navigation systems of intruding drones, particularly those reliant on satellite navigation for flight control, effectively preventing them from penetrating the designated secure zone.
The UADS-PZ04 excels in its capability to deceive and misguide UAVs using passive detection methods, successfully targeting up to 99% of commercially available drones that rely on navigation systems. Designed for round-the-clock operation, the drone jammers system functions in all weather conditions without the need for human intervention, ensuring uninterrupted airspace security. The system's omnidirectional antenna provides comprehensive 360° coverage, eliminating protective blind spots and enabling a detection range of up to 4000 meters, with a decoy range extending to 2000 meters.
This defense system also offers scalability, allowing for the integration of radio jamming capabilities to enhance its countermeasure arsenal. It can operate independently or as part of a network, efficiently managing swarm saturation attacks through a combination of detection, decoy, and jamming functions. With a transmission power of less than 10 mW, the UADS-PZ04 complies with national radio management regulations and technical requirements, providing a secure and reliable solution for airspace defense.
| Model | UADS-PZ04 |
| Detection System | |
| Operating Frequency Band | 2.4GHz, 5.8GHz |
| Direction Finding Method | 4-8 element antenna amplitude comparison direction finding |
| Direction Finding Accuracy | ±25° |
| Detection Types | Quadcopters from brands like DJI, DIY drones, fixed-wing, racing drones |
| Detection Radius | 3Km (urban) / 5Km (open area) |
| Alarm Delay | <6 seconds (0~3km) |
| Interface Control | RS422 or LAN optional |
| Power Supply | AC100240V/50Hz or DC1060V optional |
| Power Consumption | 20W |
| Function | Detection and direction finding |
| Function | |
| Frequency Range | GPS:1575.42±1.023MHz GLONASS:1602.0MHz+N×562.5kHz±511kHz (N=-7~6) |
| Equivalent Isotropic Radiated Power | <10mW |
| Frequency Tolerance | ±2×10^-6 |
| Occupied Bandwidth | No greater than the frequency range |
| Spurious Emission | 30MHz-1GHz (RBW 100kHz) < -36dBm 1GHz-18GHz (RBW 1MHz) ≤ -30dBm |
| Active Defense Function | Signal type: Real-time generation of GPS-L1 and GLONASS-L1 decoy signals Signal synchronization: Simulated satellite navigation signals with ephemeris and time synchronization accuracy <1μS |
| Activation Time | <10s |
| Active Defense Distance | More than 500 meters, less than 1000 meters, and adjustable within 500 meters |
| Protection Level | IP65 |
| Power Supply | 220V AC |
| Antenna | Omnidirectional column antenna |
