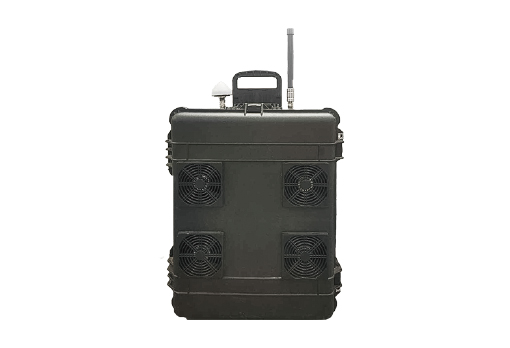

UADS-PB02
• Uav Defense System
• Flexible Power Supply: Operates using either mains electricity or a built-in lithium battery, ensuring all-weather functionality, even during thunderstorms, dense fog, or harsh weather conditions.
• Expandable System: Can be upgraded to include radio detection, offering combined reconnaissance and deception capabilities. Supports both standalone and networked operations to counter swarm saturation attacks effectively.
• Portable and Mobile: Features a trolley case design for easy portability and rapid deployment in areas where fixed installation is not feasible but drone defense is necessary.
• Omnidirectional Antenna: Equipped with a 360° antenna, providing comprehensive coverage with an adjustable defense radius of up to 500 meters and a maximum range of less than 1000 meters.
• Drone Deception: Emits false navigation satellite signals to mislead and confuse drone navigation systems, effectively creating no-fly zones and protecting against 99% of commercially available drones.
• Signal Injection for Protection: Transmits regenerated navigation satellite signals (≤10mW) into unauthorized drones’ navigation systems to redirect them away from protected areas, enhancing security.
SZMID - UADS-PB02: Portable UAV Active Defense System for Dynamic No-Fly Zones
The SZMID UADS-PB02 is a highly portable and efficient UAV defense system designed to establish secure no-fly zones by actively disrupting the satellite navigation of unauthorized drones. By emitting milliwatt-level defense control signals, it creates a protective barrier, effectively blocking "black fly" UAVs from entering sensitive areas. This system is engineered for rapid deployment in temporary protected zones, allowing users to quickly establish dynamic no-fly zones as needed to safeguard against drone intrusions in various environments.
The UADS-PB02 offers all-weather operation, powered either by mains electricity or its built-in lithium battery, ensuring uninterrupted performance regardless of adverse weather conditions such as thunderstorms, fog, or other harsh environments. Its portable pull-bar case design provides high mobility, enabling flexible deployment in locations where fixed installation of decoy equipment is impractical but drone protection is essential.
This defense system features a 360° omnidirectional antenna, providing comprehensive coverage with no blind spots. It boasts an active defense radius adjustable within 500 meters, with a maximum range exceeding 500 meters and up to 1000 meters. The UADS-PB02 can transmit false navigation satellite signals to deceive and misguide drone navigation terminals, creating an effective no-fly zone that targets and protects against 99% of commercially available drones. Additionally, the system can transmit regenerated navigation satellite signals (with power output ≤10mW) to infiltrate the navigation systems of unauthorized UAVs, steering them away from the protected area.
The UADS-PB02 is also designed with future expansion in mind, offering the ability to integrate radio detection functionalities. This allows for a combined setup of detection and deception, supporting both standalone operation and networked configurations. With its versatile countermeasure options, the system is capable of countering cluster saturation attacks, providing a comprehensive defense strategy for diverse security scenarios.
| Model | UADS-PB02 |
| Product Model | Anti-Drone Radio Active Defense Device (Shen Gong III) |
| Frequency Range | Mandatory: GPS: 1575.42±1.023MHz |
| GLONASS: 1602.0MHz+NX562.5kHz±511kHz (N = -7~6) | |
| Optional: GALILEO: 1575.42±12.276MHz | |
| Equivalent Isotropic Radiated Power | <10mW |
| Frequency Tolerance | ±2×10^-6 |
| Occupied Bandwidth | No greater than the frequency range |
| Spurious Emission | 30MHz - 1GHz (RBW 100kHz) ≤-36dBm |
| 1GHz - 18GHz (RBW 1MHz) ≤-30dBm | |
| Active Defense Function | Signal type: Real-time generation of GPS-L1, |
| GLONASS-L1 decoy signals | |
| Signal synchronization: Simulated satellite navigation | |
| signals with ephemeris and time synchronization | |
| accuracy <1μS | |
| Activation Time | <10s |
| Active Defense Distance | More than 500 meters, less than 1000 meters, and |
| adjustable within 500 meters | |
| Protection Level | IP65 |
| Power Supply | 220V AC |
| Antenna | 360° omnidirectional antenna |
| Equipment Dimensions (mm) | ≤30KG |
