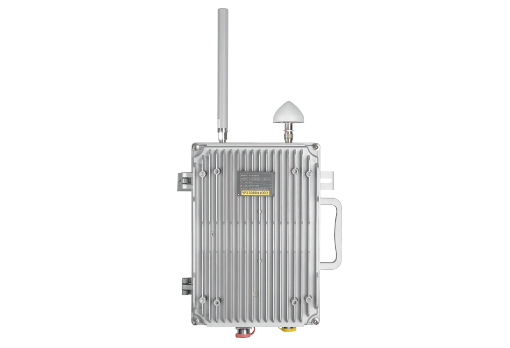

UADS-P01
• GNSS Drone Spoofers
• Deception-Based System: Targets the drone’s internal positioning device and restricted/no-fly zone database, prompting drones to respond based on their programmed strategies.
• Transmits simulated satellite navigation signals to mislead drones entering sensitive zones, ensuring effective defense and control.
• Versatile Signal Generation: Capable of generating real-time GPS-L1 and GLONASS-L1 decoy signals, with an option for GALILEO-E1. Simulated signals feature ephemeris and time synchronization accuracy of less than 1μS.
• Independent Operation: Designed for standalone functionality, allowing flexible and rapid deployment.
• Integrated Operation: Can be expanded to include radio detection and suppression functions, offering a comprehensive solution that integrates detection, suppression, and deception.
• Flexible Deployment: Supports both standalone and networked operations, adapting to various defense scenarios.
• Comprehensive Defense Solution: Combines detection, suppression, and decoy functionalities into one system, providing a robust defense mechanism for drone control.
• High Precision Deception: Maintains high synchronization accuracy in simulated signals, ensuring effective and precise control over targeted drones.
SZMID - UADS-P01: Advanced GNSS Drone Spoofers for Secure Airspace Defense
The SZMID UADS-P01 is an advanced GNSS drone spoofing system designed to deceive the internal positioning devices of UAVs and manipulate their restricted and no-fly zone databases. By transmitting simulated satellite navigation signals, this system guides unauthorized drones that intrude into sensitive areas, effectively achieving defense and control over these UAVs. The UADS-P01 meets stringent anti-terrorism prevention standards, with a transmission power of ≤10mW, making it a compliant and powerful tool for secure airspace protection.
This equipment is built to meet the technical requirements outlined in GA 1551-2019 and GA 1800.1-201/1800.6, standards set by the Ministry of Public Security. It has also been certified by the National Non-Security Committee, ensuring it is explosion-proof, lightning-proof, and resistant to salt spray. With its robust construction, the UADS-P01 can operate around the clock in all weather conditions, executing pre-set defense plans autonomously without the need for personnel intervention.
The UADS-P01 generates real-time GPS-L1 and GLONASS-L1 decoy signals, with the option to generate GALILEO-E1 signals, though BDS signals are not supported. The simulated satellite signals maintain high ephemeris and time synchronization accuracy of less than 1μS, ensuring precise and effective control over the target drones. The system's capabilities can be extended to integrate radio detection and suppression functions, creating an all-in-one solution for detection, suppression, and deception. This allows for both standalone and networked operation, providing flexible deployment options to adapt to various security scenarios.
The UADS-P01 is not only designed for independent operation but also offers the ability to expand its functionality, making it an integrated defense system. Its ability to deceive drone navigation with high precision ensures a robust response to unauthorized drone activity, thereby enhancing the security and integrity of protected airspace.
Model | UAD-P01 |
Product Model | Anti-Drone Radio Active Defense Device (Shen Gong III) |
Frequency Range | Mandatory: GPS: 1575.42±1.023MHz |
GLONASS: 1602.0MHz+NX562.5kHz±511kHz (N = -7~6) | |
Optional: GALILEO: 1575.42±12.276MHz | |
Equivalent Isotropic Radiated Power | <10mW |
Frequency Tolerance | ±2×10^-6 |
Occupied Bandwidth | No greater than the frequency range |
Spurious Emission | 30MHz - 1GHz (RBW 100kHz) ≤-36dBm |
1GHz - 18GHz (RBW 1MHz) ≤-30dBm | |
Active Defense Function | Signal type: Real-time generation of GPS-L1, |
GLONASS-L1 decoy signals | |
Signal synchronization: Simulated satellite navigation | |
signals with ephemeris and time synchronization | |
accuracy <1μS | |
Activation Time | <10s |
Active Defense Distance | More than 500 meters, less than 1000 meters, and |
adjustable within 500 meters | |
Protection Level | IP65 |
Power Supply | 220V AC |
Antenna | 360° omnidirectional antenna |
Equipment Weight | 7.8KG |
Equipment Dimensions (mm) | 410*360*150 |
