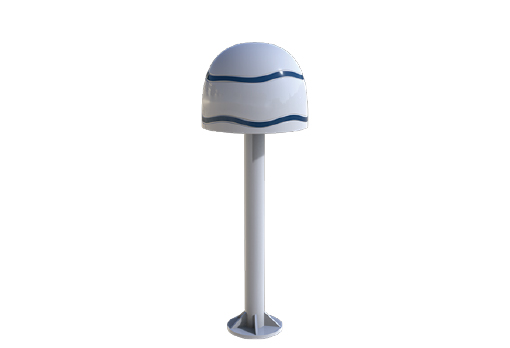

UAD-ZQY04
• Unmanned Aerial Vehicle (UAV) Detection Equipment
• Core System Functions: Automatic detection, signal recording, device connection status display, system settings, and shutdown with multi-target intrusion alerts, target identification, and movement trajectory display.
• 360° Passive Detection: Covers a 50MHz-6GHz ultra-wide spectrum for comprehensive UAV monitoring.
• Autonomous Learning: Capable of learning and recognizing unknown drones, recording their signal characteristics during flight, including industrial and consumer drones.
• AOA Single-Station Location: Provides accurate identification and positioning of drones.
• Multi-Target Detection: Can simultaneously detect and process over ten targets at once.
• All-Weather Operation: Operates continuously and autonomously in all conditions, requiring no manual intervention.
• Multi-Antenna Array: Designed to handle complex urban electromagnetic environments, with a suburban detection range of up to 6000 meters.
• Signal Recording and Recognition: Capable of recording and recognizing new drone models immediately after signal characteristics are logged.
• Whitelist Functionality: Allows specific drones to be exempted from detection.
• Patented Technology: Intelligent gain and reference level design for handling complex electromagnetic environments.
• Frequency-Hopping Signal Recognition:** Distinguishes between multiple drone controllers and industrial-grade frequency-hopping drones.
• Compact and Lightweight: Designed for easy operation and mobility.
SZMID UAD-ZQY04: Advanced UAV Detection Equipment for Comprehensive Low-Altitude Protection
The SZMID UAD-ZQY04 is a state-of-the-art unmanned aerial vehicle (UAV) detection system, designed to provide robust and accurate drone detection and identification. It seamlessly integrates advanced technologies such as collaborative spectrum sensing, deep neural networks, artificial intelligence, and machine learning to deliver precise detection and orientation tracking of low-altitude drones within a radius of over 6,000 meters. This system offers a 360° passive detection capability across an ultra-wide spectrum range of 50MHz to 6GHz, making it suitable for diverse environments, including government facilities, prisons, airports, military zones, and major events.
At the core of the UAD-ZQY04 is a system with five essential functions: automatic detection, signal recording, equipment connection status display, system setup, and system shutdown. The system also features multi-target intrusion alarms, target identification, real-time localization, movement trajectory tracking, and flight controller position display, offering comprehensive security.
Its ability to autonomously learn and recognize unknown drones, including both consumer and industrial drones, allows the system to record signal characteristics and detect new models. The patented design ensures that the UAD-ZQY04 remains at the forefront of drone detection technology. The system's AOA single-station identification enables precise positioning, and it can process over 12 targets simultaneously.
Engineered for continuous, 24/7, unattended operation, the UAD-ZQY04 features a multi-antenna array design, enabling it to operate effectively in complex urban electromagnetic environments. It also boasts a unique intelligent gain and reference level system for optimizing detection in challenging electromagnetic conditions. With a special frequency-hopping signal recognition capability, the system can distinguish between multiple drone controllers and industrial-grade frequency-hopping drones.
Compact, lightweight, and easy to operate, the UAD-ZQY04 delivers unparalleled protection against drone intrusions, ensuring the highest level of security in a wide range of defense scenarios.
| Model | UAD-ZQY04 | |
| Detection Range | 50MHz~6GHz | |
| Detection Radius | ≥5000m (depending on conditions) | |
| Real-Time Processing Bandwidth | 160MHz | |
| Range Accuracy | ≤10%R | |
| Horizontal Range | 0-360° | |
| Whitelist | Available | |
| Unattended Operation | Available | |
| Data Storage, Historical Trajectory Playback | Available | |
| Signal Recording | Available | |
| Single-Station Positioning | Available | |
| Audible and Visual Alarm Functions | Available | |
| Protection Level | IP65 | |
| Dimensions | =500mm, H=500mm | |
| Weight | 12KG | |
| Maximum Power Consumption | Detection ≤60W | |
| Operating Temperature | -30° to 60° | |
