UAD-ZQY03Pro
• Drone detection Equipment (full band)
• Allows for the creation of whitelists and blacklists for specific drones to manage permissions and restrictions.
• Fully automatic operation; when paired with a strike system, it can autonomously switch to defense mode and engage targets.
• Simultaneously recognizes ≥10 different non-DJI drone controllers, ensuring broad compatibility.
• Detects and identifies drone models and unique electronic fingerprints, supporting recognition of ≥36 different drone brands and their corresponding IDs.
• Detects drones as soon as they are powered on, providing pre-flight warnings for enhanced security.
• Multiple devices can be networked through a server, allowing remote monitoring, status checks, alarm message reception, and defense function activation.
• Enables users to plot defense areas visually on a map for targeted drone control.
• Simultaneous detection and direction finding of multiple drones, with live display of target locations on the map.
• Supports switching between online and offline maps, as well as street and satellite views for enhanced visualization.
• Built-in and continuously updated sample database, providing automatic analysis, drone type recognition, and creation of unique electronic fingerprint archives for future detection and alarms.
SZMID UAD-ZQY03Pro: Comprehensive UAV Detection and Early Warning System with Autonomous Defense Capabilities
The SZMID UAD-ZQY03Pro is a cutting-edge UAV detection and identification system, designed to provide early warning, tracking, and orientation for drones operating beyond visual range. The system is lightweight, cost-effective, and energy-efficient, addressing the limitations of traditional UAV detection equipment that tend to be bulky and power-intensive. By passively intercepting video transmission and remote control signals between drones and their controllers, the UAD-ZQY03Pro provides reliable, long-range detection with a maximum horizontal range of up to 8 kilometers in open areas.
The UAD-ZQY03Pro enables users to configure both whitelists and blacklists for specific drones, providing tailored control over which UAVs are monitored or excluded. Once automatic defense mode is activated, the system operates autonomously in unattended mode, detecting drones and switching to strike mode when paired with a strike system. It can recognize more than 10 different non-DJI drone controllers simultaneously, ensuring comprehensive coverage for various drone types.
With precise identification technology, the UAD-ZQY03Pro accurately detects the model and electronic fingerprint of each drone, capable of recognizing over 36 different drone brands and their corresponding IDs. The advanced early warning feature enables detection even before the drone takes off, providing ground-based alerts as soon as the UAV is powered on.
The system is designed to operate within a network of multiple servers, allowing remote monitoring and control of various devices, including checking device statuses, receiving alerts, and activating defense functions. Users can visually plot defense areas on a map for efficient control, and the system supports real-time detection, direction finding, and positioning for multiple UAVs, with simultaneous display of multiple targets on the map.
The UAD-ZQY03Pro supports both online and offline map switching, including satellite and street views. It features a built-in sample database that is continuously updated with the characteristics of mainstream drone manufacturers, allowing automatic analysis and identification of UAVs based on known parameters. The system also creates unique electronic fingerprint archives for each drone model, enabling efficient tracking and alerting for future detections, while distinguishing between drones of the same brand, model, location, and altitude.
This powerful, easy-to-use system provides comprehensive UAV detection, identification, and defense, making it ideal for securing sensitive areas against unauthorized drone activity.
| Model | UAD-ZQY03Pro | |
| Operating Frequency | 20MHz-6GHz | |
| Detection Radius | ≥7.5km | |
| Identification Radius Distance | ≥5km, capable of identifying drone brands and models | |
| Detection Angle | 360° | |
| Detection Angle Accuracy (RMS) | ≤ 1° at 5km or more | |
| Drone Radio Interception Response Time | ≤2s | |
| Minimum Detection Height | ≤0m | |
| Detection Success Rate | ≥99% | |
| Simultaneous Drone Detection | ≥60 drones | |
| Capability to Detect Different Protocols | LightBridge1, LightBridge2; Ocusync; WIFI and WIFI variants; capabilities for detecting non-database rogue drones | |
| False Alarm Requirement | Drone defense system detects continuously for 2 hours, with an alarm rate of less than 1 incident in the absence of drones within the detection range | |
| Protection Level | ≥IP66 | |
| Log Storage Function | ≥5 years | |
| ADS-B Receiver | Reception Distance: 300km | |
| Total Power Consumption | ≤100W | |

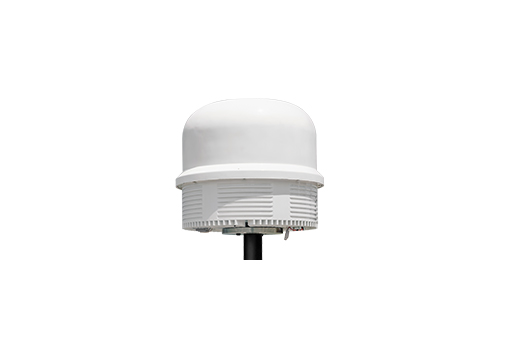

| Main Unit Dimensions | φ430mm x 280mm | |
| Main Unit Weight | ≤12kg | |

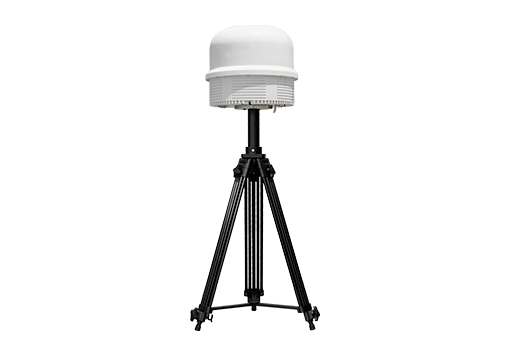

| Tripod Dimensions | Maximum height 1.63m | |

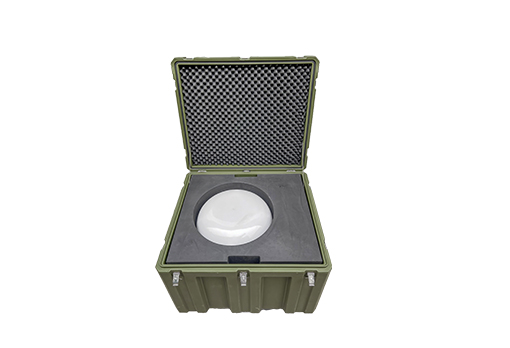

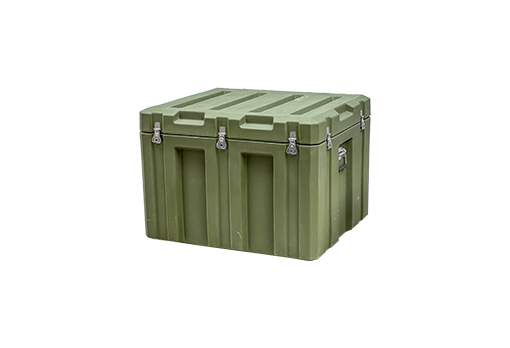

| Flight Case Dimensions | 515140 | |
| Operating Temperature | -30~+70℃ | |
| Operating Humidity | 20~90%RH non-condensing | |
