UAD-ZB07
• Portable full frequency detection equipment
• Covers an extensive frequency range from 70MHz to 6000MHz, detecting signals across all major drone communication bands.
• Offers a maximum detection radius of up to 2 km, adaptable to diverse environments and conditions.
• Equipped with advanced signal analysis technology, ensuring a false alarm rate of under 0.9% for dependable performance.
• Features sound, light, and vibration alarm options, providing timely alerts even in loud or visually obstructed surroundings.

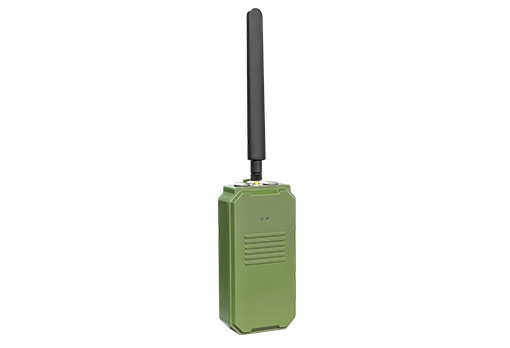

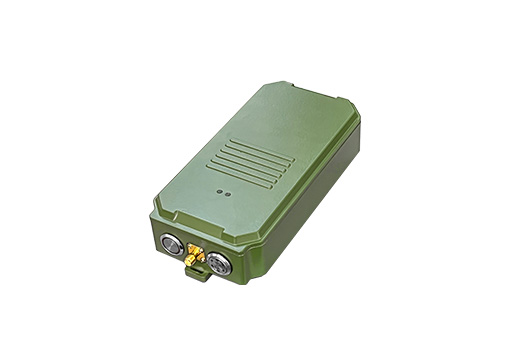

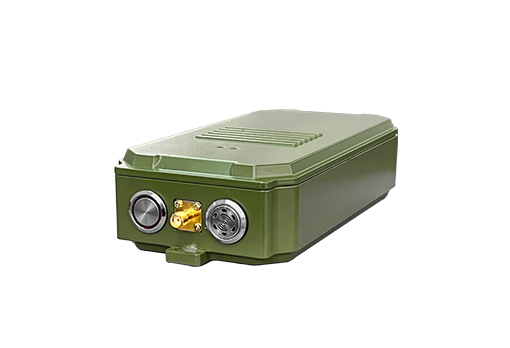

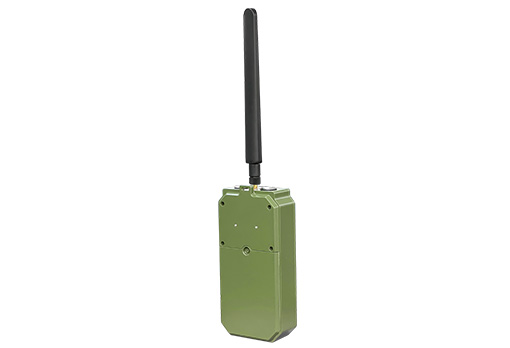

SZMID UAD-ZB07: Advanced Portable Full-Range Detection Device
The SZMID UAD-ZB07 is a cutting-edge full-frequency portable drone detector, engineered specifically for high-performance UAV detection and early warning. It is a versatile tool that can be seamlessly integrated with basic anti drone systems or decoy equipment to form a robust and complete defense solution. With its wide operating frequency range from 70MHz to 6000MHz, the UAD-ZB07 covers all major drone communication protocols, making it suitable for over 98% of civilian UAV models, including DJI, Autel, Harbosen, and Changtianyou. This comprehensive frequency coverage ensures that drones using WiFi, Enhanced WiFi, LightBridge, OcuSync, and other popular protocols are reliably detected.
Designed for mobility and ease of use, the lightweight and portable UAD-ZB07 is ideal for police officers, security personnel, and mobile units. Its rapid detection capabilities allow for immediate response to drone activity, effectively compensating for the challenges of delayed UAV detection in operational environments. With a maximum detection radius of up to 2 km, the signal detectors is suitable for a wide variety of scenarios, from urban areas to open fields.
The UAD-ZB07 is equipped with optimized signal analysis algorithms that minimize false alarms to less than 0.9%, delivering highly accurate and dependable results. The device also supports sound, light, and vibration alarm modes, ensuring timely alerts even in noisy or low-visibility conditions, so users are always aware of nearby drone activity. This advanced detection system offers unparalleled versatility, making it an essential tool for comprehensive UAV monitoring and defense.
| Model | UAD-ZB07 |
| Operating Frequency Range | 70MHz ~ 6000MHz |
| Detection Radius | 1.5km (depending on model/environment) |
| Detection Coverage | Omnidirectional 360° |
| False Alarm Rate | ≤ 1% |
| Alarm Mode | Sound, Light, Vibration |
| Detection Types | DJI Full Series (wifi, enhanced wifi, LightBridge, OcuSync (1.0, 2.0, 3.0, 4.0)), Autel Full Series, Hubsan, ChangTianYou, Fimi, Aosenma, various analog video transmission, P900, P850 frequency-hopping remote control, Zongheng, Linzhou, Tianhang, Avatar and other video transmission chips or other drones using the same or compatible protocols |
| Power Consumption | 4W |
| Battery Life | 8 hours |
| Battery Capacity | 3.7V 9600mAh |
| Charging Method | Magnetic charging DC5V1A and above |
| Device Weight | 800g |
| Device Dimensions | 169mm80mm40.5mm (without antenna), 361mm80mm40.5mm (with antenna) |
| Operating Temperature | -35℃ ~ +60℃ (environment) |
| Relative Humidity | 5~80% RH without condensation |
