UAD-ZB06

• Portable Drone Detection Device
• Compact and Lightweight: Easily operated with one hand for maximum convenience.
• Fuzzy Direction Finding: Utilizes signal strength for approximate drone location detection.
• High Recognition Rate: Detects and identifies over 90% of mainstream consumer and DIY drones.
• Informative Display: Shows drone model, frequency band, and signal strength on the screen.
• Multiple Alarm Methods: Provides sound, vibration, and on-screen alerts for drone detection.
• Stealthy Operation: Passive detection without emitting electromagnetic waves, ensuring undetectable monitoring.
• All-Weather Adaptability: Functions effectively in foggy conditions and light rain with strong environmental resistance.
• Low Maintenance Costs: Designed for long-term continuous operation with minimal upkeep.
• Flexible Frequency Support: Default operation at 2400-2485MHz/5150-5950MHz, expandable to 430-440MHz/800-1500MHz as required.
• Omnidirectional Detection: Covers up to a 2km range, depending on drone model and environment.

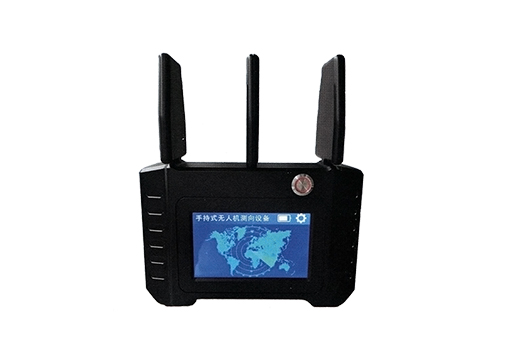

SZMID UAD-ZB06: Portable Drone Detection Device with AI-Driven Direction-Finding Technology

The SZMID UAD-ZB06 is an advanced portable drone detection device that integrates spectrum perception and artificial intelligence technology to detect and identify unauthorized UAVs. Equipped with capabilities for reconnaissance, direction finding, display control, and networking, the UAD-ZB06 provides a comprehensive solution for locating and monitoring drones. Its compact and lightweight design allows for one-handed operation, making it ideal for field use and rapid deployment in various scenarios.

Utilizing fuzzy direction-finding based on signal strength, the device can pinpoint the direction of UAVs with high accuracy, effectively detecting and identifying over 98% of consumer-grade and DIY drones. The UAD-ZB06’s screen provides detailed information about the detected drones, including model, frequency band, and signal strength, giving operators real-time insight into the situation.

The device offers multiple alarm methods, including sound, vibration, and visual alerts, and operates passively without emitting electromagnetic waves, ensuring stealth and preventing detection. Designed for all-weather functionality, the UAD-ZB06 performs reliably in fog and light rain, offering strong environmental adaptability. With extended frequency support, covering 2400-2485 MHz and 5150-5950 MHz by default and expandable to 430-440 MHz and 800-1500 MHz, the device ensures versatility in various environments.

The UAD-ZB06 has a long battery life for continuous operation, and its low maintenance requirements make it highly cost-effective. With an omnidirectional detection range of up to 2 kilometers, depending on the environment and UAV model, this device is an essential tool for efficient and reliable drone detection.

Model UAD-ZB06
Screen Control 5-inch touch screen
Detection Frequency 2400-2485MHz/5150-5950MHz
Expandable 430-440MHz/800-1500MHz
Detection Distance 1.5km (open area) Horizontal coverage 360° (depends on the model/situation)
Directional Accuracy Error <20°
False Alarm Rate ≤5%
Miss Rate ≤5%
Reconnaissance Response Time From the time the device enters the reconnaissance range to when the device determines the target direction ≤10s
Main Unit Weight 2Kg
Protection Level ≥IP54
Power Supply Built-in lithium battery 28V/3000mAh

Documents

  • SZMID - UAD-ZB06 Drone RF Detection
