UAD-ZB03
• Drone Pilot Positioning Device
• Captures GPS coordinates for drone, pilot, and return-to-home locations, along with drone models and unique serial numbers.
• Provides real-time data on drone distance, bearing angles, and other relevant positioning details.
• Operates within a 70MHz to 6GHz spectrum, supporting real-time IQ data collection.
• Equipped with Gigabit Ethernet for data transmission, with 5V power and 15W power consumption.
• Detection range extends from 1 to 20 kilometers, exceeding typical drone video transmission distances.
• Capable of issuing alerts for drone intrusions from mainstream UAV models.
SZMID UAD-ZB03 for Comprehensive UAV Defense

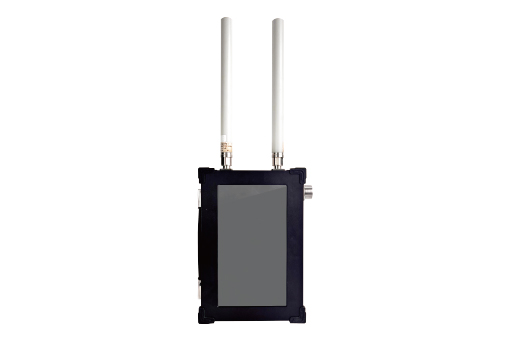

The SZMID UAD-ZB03 is an advanced drone pilot positioning device, designed to detect, monitor, and identify UAV activity in real time. Built using central control and protocol parsing technology, the UAD-ZB03 offers a robust UAV monitoring and early warning platform, allowing for precise detection of drones within its range. The device can accurately display critical information such as the UAV's serial number, model, GPS coordinates, speed, altitude, trajectory, and even the remote control's location, making it a powerful tool for low-altitude security protection.
With support for acquiring GPS coordinates for the drone, pilot, and return points, along with drone models and unique serial numbers, the UAD-ZB03 provides a comprehensive monitoring of the UAV’s position and behavior.

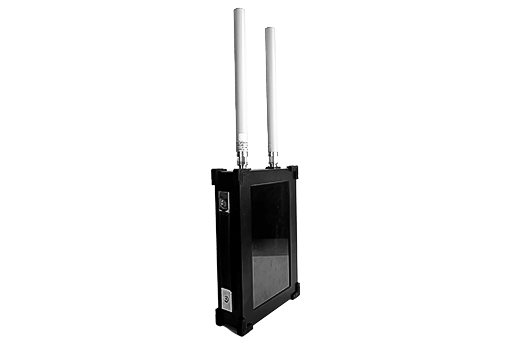

The SZMID UAD-ZB03 delivers real-time data on the drone's distance from the signal detection device, as well as its bearing angles, enhancing situational awareness. Operating across a wide frequency spectrum from 70MHz to 6GHz, the device also supports real-time IQ data collection for precise signal analysis.

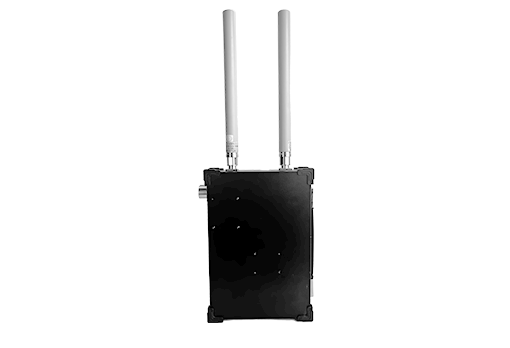

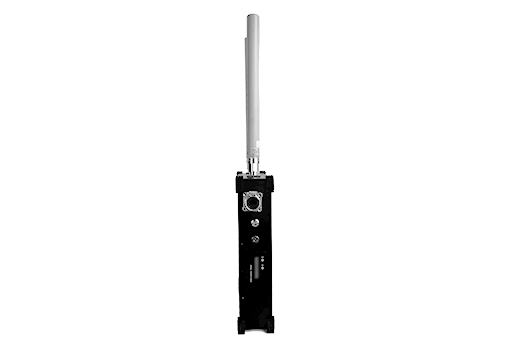

The UAD-ZB03 is compact, lightweight, and easy to carry, making it suitable for a variety of field operations. Its detection range extends from 1 to 20 kilometers, ensuring reliable detection even beyond typical UAV video transmission distances. Equipped with Gigabit Ethernet for high-speed data transmission, and consuming just 15W of power, the device can issue real-time intrusion alerts for a wide range of mainstream drones, making it an essential tool for securing low-altitude airspace.
| Model | UAD-ZB03 |
| Operating Frequency | 70MHz ~ 6000MHz (including but not limited to 900MHz, 2.4GHz, 5.2GHz, 5.8GHz) |
| Detection Radius | 1km ~ 18km (depends on model/environment) |
| Detection Coverage | 360° |
| Positioning Accuracy | ≤ 1m |
| Batch Detection Capability | ≥ 20 drones |
| False Alarm Rate | ≤ 1% |
| Trajectory Display | ≥ 20 tracks |
| Battery Life | 9 hours |
| Operating Temperature | -20℃ ~ +55°C |
| Power Supply | DC12V1A |
| Charging Mode | DC12.6V2A |
| Device Weight | 3.35Kg |
| Device Dimensions | 57021077mm |
| Whitelist/Blacklist | Capable of setting whitelist and blacklist for drones |
| Supported Models | DJI series, Xiaomi, Doton, and racing drones |
| Real-Time Networking | Capable of real-time multi-system and multi-device networking, with second-level data sharing |
| Unique Identity Recognition | Capable of recognizing the unique serial number of drones |
