UAD-ZB01

• Handheld Drone Signal Detection Device
• Detects and identifies over 95% of popular civilian drones, providing real-time alerts through sound, light, and vibration signals.
• Maintains exceptional accuracy in complex electromagnetic environments with a very low false alarm rate.

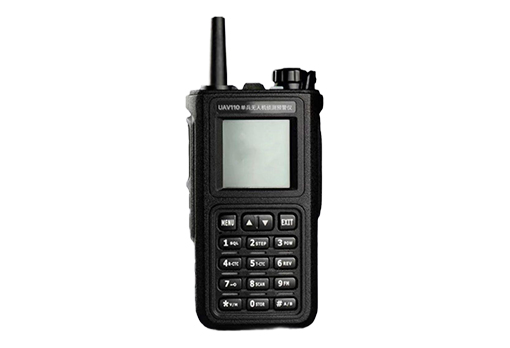

Portable Drone Detector, similar in size to a walkie-talkie, making it ideal for on-the-go operations.
• Equipped with an external ultra-wideband antenna, enabling detection within a radius of up to 3.5 kilometers.
• Powered by a long-lasting battery, offering more than 8 hours of continuous use.
• Customizable drone detection frequency bands to meet various international requirements.

SZMID UAD-ZB01: Compact Handheld Drone Detection Device

The SZMID UAD-ZB01 is an advanced handheld drone detection device designed to detect and identify common civilian UAVs, making it an essential tool for comprehensive drone defense. Utilizing self-developed low-power digital-analog hybrid receiver technology and advanced power management, this device ensures efficient and accurate detection of drones, including quadcopters, fixed-wing models, DIY drones, and racing drones. Its external ultra-broadband antenna enables precise identification and provides sound, light, and vibration alerts when drones are detected.

This lightweight, walkie-talkie-sized device is perfect for field operations, particularly for law enforcement officers or mobile units who need to quickly identify drone activity in the vicinity. The UAD-ZB01 is capable of detecting over 95% of popular civilian drones and maintains an impressively low false alarm rate, even in highly complex electromagnetic environments. With a detection radius of up to 3.5 kilometers and a battery life exceeding 8 hours, the device offers sustained performance for extended operations.

Designed for versatility, the UAD-ZB01 can also be paired with drone jamming or deception equipment to create a comprehensive defense system, allowing users to respond to drone threats effectively and in real time. Whether used for mobile duty or integrated into broader defense frameworks, the UAD-ZB01 ensures timely and reliable detection of nearby drones.

odel UAD-ZB01
Applicable Targets All DJI series, All Autel series, mainstream WiFi, 5.8GHz FPV racing drones
Detection Frequency Bands 2400-2485MHz/5150-5950MHz
Operating Radius Air >1500 meters, Ground >150 meters
Dimensions 135x62x38mm (including antenna)
Operating Weight 270g

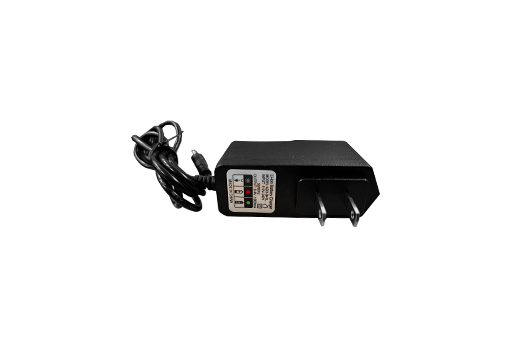

Power Supply Replaceable lithium battery
Battery Life 8 hours (dual battery)
Protection Level IP67
Environmental Adaptability Temperature: -35 ~ +60℃
Humidity: 5~90% Rth

Documents

  • SZMID - UAD-ZB01 Drone RF Detection
