UAD-P01SS

• Time Synchronization Protection Equipment
• Adaptive Mode Switching: Automatically toggles between synchronization hold mode and rejection hold mode based on the input signal status.
• Real-Time Signal Monitoring: Continuously monitors satellite navigation signals at the installation site, detecting interference in real-time, triggering alarms during interference, and clearing alarms immediately after interference stops.
• Signal Isolation: Isolates non-confidential GPS L1 and BDS B1 signals to ensure the uninterrupted operation of timing equipment. Supports both static and dynamic user trajectory generation.
• Data Logging and Reporting: Equipped with data reporting and log storage capabilities, recording alarm statuses, operational states, training progress, and input signal health.
• Output Signal Monitoring: Monitors the status of output signals, logging alarms for any abnormalities. Regularly inspects input signal health and maintains records for operational integrity.
• Remote Command and Control: Supports remote configuration and control, allowing real-time configuration of output signals and operational status reporting.
• Interference Resistance: Capable of resisting beacon and spoofing signals, ensuring that output signals meet stringent time synchronization accuracy requirements.
• Full-Band Interference Resilience: Maintains signal output and hold accuracy even under full-band interference conditions, ensuring reliable performance in challenging environments.

SZMID - UAD-P01SS: Advanced Time Synchronization Protection for Enhanced System Security

The SZMID UAD-P01SS is a state-of-the-art time synchronization protection system designed to enhance the security, stability, and resilience of timing systems against various interference and attack scenarios. This equipment ensures reliable time synchronization even in the presence of full-frequency suppression interference, maintaining accurate signal output to meet stringent punctuality and accuracy requirements. Compatible with existing power system timing equipment, the UAD-P01SS can be seamlessly installed between the timing devices and the navigation satellite signal receiving antenna without the need to replace existing infrastructure. It actively monitors the health and safety status of received satellite signals, effectively identifying and isolating interference and spoofing signals to safeguard the timing system's integrity.

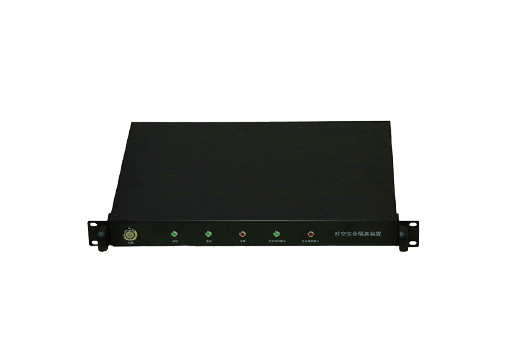

To further protect timing systems, the UAD-P01SS automatically isolates unsafe GPS L1 and BDS B1 signals, ensuring the uninterrupted operation of timing devices. Housed in a standard 1U chassis for easy mounting, the system intelligently switches between synchronization hold mode and deny hold mode based on the state of the input signals. It continuously monitors the satellite navigation signals at the installation site, promptly triggering an alarm when interference is detected and clearing the alarm once the interference ceases.

In addition to providing real-time monitoring, the UAD-P01SS features data reporting and log storage capabilities, recording essential information such as alarm status, operational state, and input signal health. It actively monitors output signal status, logging alarms for any abnormalities, and ensures the health of input signals is routinely checked and documented. The system is also equipped for remote command and control, enabling users to configure output signals and receive real-time status reports, enhancing operational efficiency.

Designed to withstand advanced spoofing attempts, the UAD-P01SS is immune to forwarded and generated deception signals, consistently outputting signals that meet precise time synchronization accuracy standards. Even under full-frequency suppression interference conditions, the UAD-P01SS ensures that signal output remains punctual and accurate, providing a robust defense mechanism to secure critical timing infrastructure.

Model UAD-P01SS
Output Frequency Points GPS L1 C/A (1575.42MHz)
 BDS B1I (1561.098MHz)
 Other frequency points can be extended
Receiving Frequency Points GPS-L1 (1575.42±1.023MHz)
BDS-B1 (1561.098±2.046MHz)
BDS-B3I (1268.52±10.23MHz)
Other frequency points can be extended
Output Power -125dBm-90dBm
Power Supply and Consumption Power Supply: AC 220V
Network Port: RJ45
1PPS Clock Input/Output: BNC
Timing Signal Input/Output: BNC
Satellite Signal Input/Output: TNC
Security Signal Output: TNC
Operating Environment Operating Temperature: -20℃+70℃
Storage Temperature: -45℃+85℃
Dimensions 480X300X445mm
