UAD-GRF-GD01

The SZMID UAD-GRF-GD01 is an advanced broad-spectrum radio jammer designed to effectively neutralize UAV threats by suppressing their navigation, remote control, and image transmission signals. This system ensures that drones are unable to maintain location or control, successfully preventing UAV intrusions from various distances. With its capability of directional interference, the device allows for remote control over UAV targets, making it a vital component in modern airspace defense strategies.

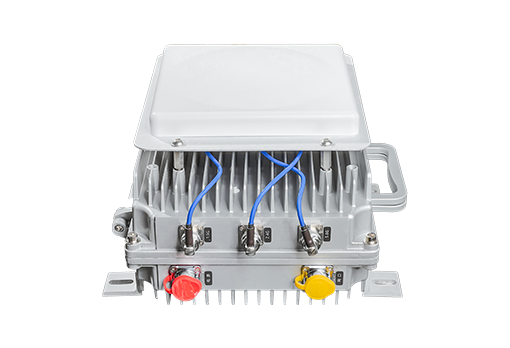

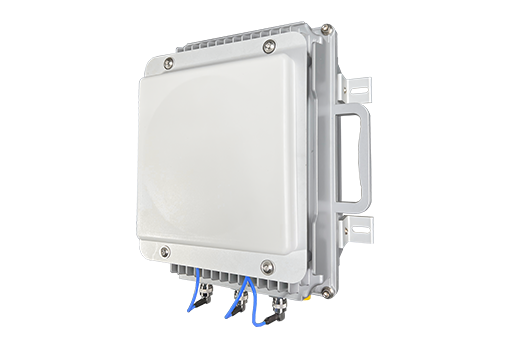

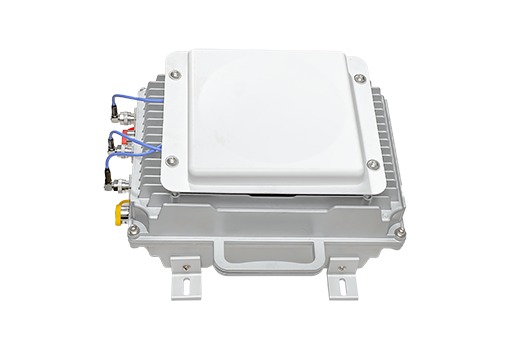

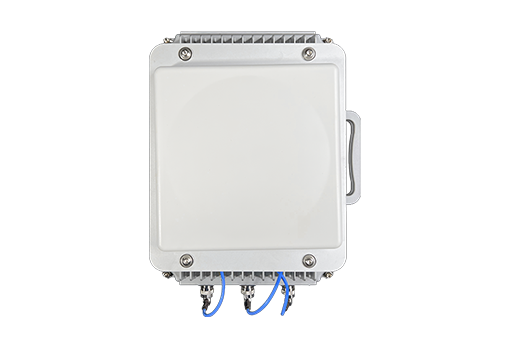

The radio jamming system is split into two core components: the interference module and the antenna. Each of its three jamming channels is independently powered, offering flexibility to control each channel separately. This enables targeted jamming with the ability to configure interference for each signal independently. Its compact design supports flexible, multi-faceted matrix assembly, allowing for free assembly of the units according to the defense area's specific terrain, making it ideal for a wide range of applications. The UAD-GRF-GD01 is designed for continuous 24/7 operation, withstanding severe weather conditions such as fog, thunderstorms, and other environmental challenges.

The system offers advanced defense plan customization, enabling intelligent execution of pre-programmed strategies. It seamlessly integrates with detection devices, enabling coordinated strikes even outside the defense area. Customers can tailor the system according to their needs, with multi-module and multi-array configurations available. The device's transmission antenna can be customized with beam angles ranging from 10° to 180°, depending on the specific interference requirements.

The UAD-GRF-GD01 broadcasts high-power jamming signals on the 1.5G, 2.4G, and 5.8G frequency bands, effectively disrupting UAV control within a radius of 1000 to 5000 meters. Utilizing high-gain directional flat-panel antennas, the system achieves concentrated energy targeting with a transmission power of 25-30 watts per channel, ensuring precise and effective jamming. Its robust resistance to external electromagnetic interference, coupled with its highly scalable design, makes it a versatile solution for diverse operational environments.

Additionally, the system supports the inclusion of internal energy storage batteries, enabling its application in a variety of scenarios. For larger-scale defense needs, multiple units can be linked to create coordinated, multi-directional strikes. For instance, if a UAV intrusion is detected from the north, the north module can be independently activated for a swift and accurate response.

In summary, the SZMID UAD-GRF-GD01 is a sophisticated and customizable UAV jamming system, offering precise control, high-power interference, and exceptional scalability to meet the needs of modern airspace defense.
