UAD-GQ03
• Drone Radio Frequency Jammer
• Customizable single-channel power, integrated with drone detection systems for combined detection and jamming, supporting networked operations.
• Can function as a standalone drone jammer or serve as an explosive disposal jammer, signal jammer, and walkie-talkie jammer.
• Jamming radius of up to 3 kilometers in open areas and up to 1.5 kilometer in urban environments.
• Full-band jamming from 20MHz to 6GHz, covering 98% of drone models, with freely programmable frequency bands.
• Equipped with high-gain omnidirectional antennas for 360° coverage and wide-area protection.
• Advanced protection features including RF output open-circuit and short-circuit protection, along with internal power safeguards against undervoltage, overvoltage, overload, and short circuits.

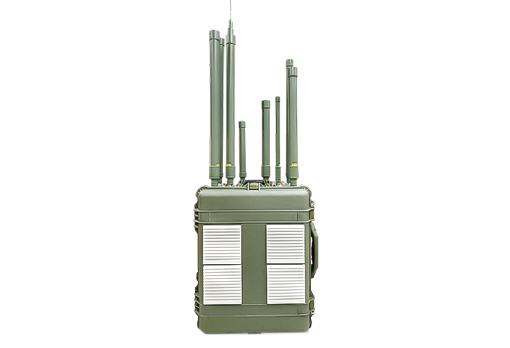

SZMID UAD-GQ03 – Versatile Full-Band Drone Radio Frequency Jammer
The SZMID UAD-GQ03 is a highly versatile and powerful drone radio frequency jammer, designed to disrupt UAV operations by targeting a wide range of frequencies. Utilizing high-gain omnidirectional RF interference technology, the device covers the full frequency band from 20MHz to 6GHz, with a focus on commonly used drone frequencies such as 900MHz, 2.4G, 5.8G, and GPS. This extensive coverage, along with freely programmable frequency bands, allows the UAD-GQ03 to effectively counter 98% of all UAV models. Whether used as a standalone drone jamming system or integrated with a UAV detection network, this device provides comprehensive countermeasure capabilities.
Upon detecting suspicious UAV activity, the UAD-GQ03 emits high-power RF interference signals, disrupting the satellite navigation, wireless control, and video transmission of the target drone. This interference forces the UAV to hover, land, or return to its original route, neutralizing any potential threat. The device can also be used as a specialized jammer for explosive disposal (EOD), signal blocking, or even intercom disruption, making it adaptable for various operational scenarios.
In open, unobstructed areas, the UAD-GQ03 achieves an impressive jamming radius of up to 3 kilometers, while in urban environments, the range extends up to 1.5 kilometer. The system is equipped with high-gain omnidirectional antennas, ensuring full 360° coverage and providing effective interference across wide areas.
The UAD-GQ03 is designed with robust protection mechanisms, including RF output no-load and short-circuit protection. Its internal power system features safeguards against undervoltage, overvoltage, overload, and short-circuits, ensuring reliable and continuous operation in the field. Additionally, the device can be customized with increased single-channel power based on customer requirements, further enhancing its effectiveness in various mission profiles.
With its flexible operational capabilities and advanced jamming technologies, the SZMID UAD-GQ03 is an ideal solution for comprehensive drone defense and signal interference applications.
| Model | UAD-GQ03 |
| Interference Type | Sweep Frequency Interference |
| Interference Band | 20MHz-6GHz Full Frequency Seamless Coverage |
| Working Mode | Comb Spectrum, Sweep Frequency |
| Interference Distance | 3KM in open areas, ≤1KM in urban environments |
| Interference Direction | 360° |
| Antenna | High Gain Omnidirectional 8 Channels |
| Interference Mode | Omnidirectional Interference |
| Operating Humidity | 80%RH±3 |
| Operating Temperature | -25℃～+45℃ |
| Interference Mode | Full Digital Frequency Synthesis Technology |
| Transmission Power | ≥450W |
| Power Adaptability | AC220V Mains/ Built-in Battery DC24-28V |
| Input Current | DC28V60A |
| Reliability and Maintainability | MTBF≥1000 Hours, MTTR≤1 Hour |
| Working Mode | Full Band Working Mode, Sub-band Working Mode |
| Host Weight | ≤60KG |
| Power Consumption | 1500W |
| Host Size | ≤63×50×35cm (excluding antenna) |
