SZMID-SR224

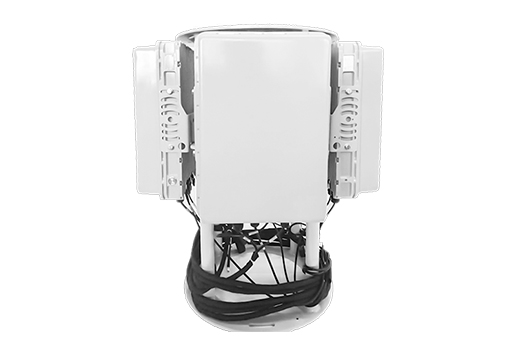

The SZMID SR224 Drone Surveillance Radar, also functioning as a drone detection radar, is an advanced detection system designed for comprehensive monitoring, warning, and target indication of UAVs in critical areas. The radar host comprises four independent radar fronts and a centralized control box, with each front functioning as a standalone detection unit. These units are equipped with array antennas, transceiver components, RF digital integrated modules, and signal and data processing modules. Together, they perform functions such as signal amplification, transmission, reception, Digital Beamforming (DBF), Doppler filtering, and Constant False Alarm Rate (CFAR) detection, outputting precise target location and feature information. The integrated control box manages power distribution, system clock synchronization, and consolidates the output from all arrays into a single Ethernet channel for streamlined data transmission.

This radar system operates on the C-band and employs full digital active phased array technology combined with DBF, offering high data rates while maintaining a lightweight, compact design. As an anti-drone solution, the advanced Doppler clutter suppression technology allows for adaptive detection of moving targets, ensuring stable tracking of high-mobility UAVs even in complex environments. One of its key strengths is its exceptional low-altitude detection capability, facilitated by a Doppler filtering system that eliminates clutter spectrum diffusion issues often associated with mechanically scanned radar antennas. This makes the SR224 particularly effective in detecting and tracking low-altitude UAVs in areas with high background clutter, making it an ideal choice for anti-drone defense operations.

The SR224 features a compact and portable design, positioning it as an ideal portable drone detector for quick deployment and ease of operation. Its user-friendly terminal software simplifies installation and operation, offering an intuitive interface that enhances the user experience. A key advantage of this radar is its high reliability, achieved by eliminating mechanical rotating components. This design choice reduces the risk of mechanical or electrical failures, ensuring uninterrupted operations and making it a dependable choice for mobile drone detection in dynamic environments. Additionally, the SR224 is designed to minimize RF interference, ensuring stable and accurate detection even in environments with high electromagnetic noise, further enhancing its performance and reliability in complex settings.

The radar system's software suite includes RF digital integration, signal and data processing, and terminal monitoring software. It supports integration with electro-optical systems for enhanced target tracking and identification. The SR224 also employs advanced non-uniform detection technology, applying tailored detection schemes to different areas within the surveillance zone to optimize overall performance. With its combination of cutting-edge technology, adaptability, and ease of use, the SZMID SR224 offers a robust solution for UAV detection and airspace security.
