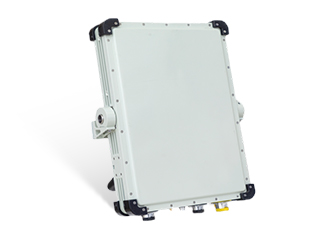

SZMID-JH501
• Coastal Security Radar
• High Sensitivity and Precision: Offers rapid tracking with exceptional precision and high data rates, ensuring accurate real-time trajectory tracking.
• 24/7 All-Weather Operation: Designed to function continuously in challenging conditions such as nighttime, heavy rain, snow, fog, and dust.
• Compact and Portable Design: Lightweight, easy to transport, and quick to set up, making it ideal for mobile operations.
• Advanced DBF Technology: Utilizes Digital Beamforming (DBF) for enhanced anti-interference capabilities and multi-beam signal transmission.
SZMID-JH501 Coastal Security Radar: Advanced Maritime Monitoring Solution
The SZMID-JH501 Coastal Security Radar is an innovative and versatile radar system, primarily composed of a standalone radar array, designed for use in both coastal and inland areas. It excels in monitoring, detecting, and providing early warning and target indication of ships, offering precise tracking information. With a compact design and ease of setup, this radar delivers enhanced situational awareness and protection, especially in marine environments. Its lightweight build and user-friendly operation make it an ideal choice for rapid deployment, offering a high-performance solution at a competitive price.
Featuring superior real-time sensitivity, the SZMID-JH501 ensures fast tracking speed and exceptional accuracy, providing reliable trajectory tracking and a high data rate. Its ability to operate seamlessly in all weather conditions, including nighttime, rain, snow, fog, and dust, allows for 24/7 continuous monitoring in harsh environments.
Equipped with advanced Digital Beamforming (DBF) technology, the radar is designed to enhance anti-interference capabilities through multi-beam transmission, ensuring uninterrupted and accurate performance. This compact, high-precision radar system is a dependable security solution for sea-based detection and monitoring.
| Technical Parameter | SZMD-JH501 (A-type) | SZMD-JH501 (B-type) | SZMD-JH501 (C-type) |
| Operating System | Phased Array System (Azimuth Phased Scanning) | Phased Array System (Azimuth Phased Scanning) | Phased Array System (Azimuth Phased Scanning) |
| Operating Frequency Band | C-band | C-band | C-band |
| Effective Detection Capability | 30m ~ 1.2km (Ships) | 100m ~ 3.0km (Ships) | 100m ~ 5.0km (Ships) |
| Azimuth Coverage | ≥90° | 90°/180°/270°/360° | 90°/180°/270°/360° |
| Elevation Coverage | ≥18° | ≥18° | ≥18° |
| Detection Speed | 0.5m/s ~ 50m/s | 0.5m/s ~ 30m/s | 0.5m/s ~ 35m/s |
| Azimuth Accuracy | ≤ 1.0° | ≤ 1.0° | ≤ 1.0° |
| Data Rate | ≥9Hz | ≥2Hz | ≥2Hz |
| Data Interface | RJ45/1 Gigabit Ethernet | RJ45/1 Gigabit Ethernet | RJ45/1 Gigabit Ethernet |
| Power Supply | ≤25W (Power Consumption) DC 12V ~ 36V (Input) | ≤55W (Power Consumption) AC 220V (Input) | ≤60W (Power Consumption) AC 220V (Input) |
| Operating Temperature | -40℃ ~ 55℃ | -40℃ ~ 55℃ | -40℃ ~ 55℃ |
| Weight | ≤4.5kg | ≤5.5kg | ≤5.5kg |
| Product Dimensions | 324 x 86 x 436 | 324 x 86 x 436 | 324 x 86 x |
