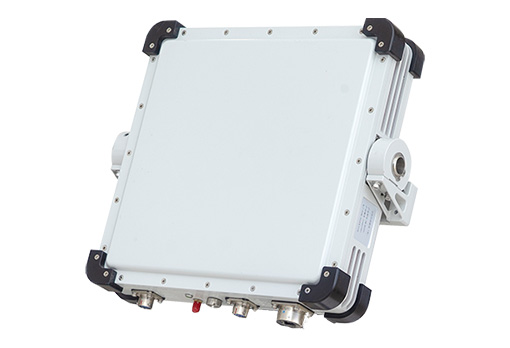

SZMID-DM101
• Ground Security Radar
• Provides long-range tracking with high accuracy, offering reliable information for border defense and security personnel.
• Functions effectively in challenging conditions such as nighttime, rain, snow, fog, and dust.
• Compact, lightweight design allows for easy setup on existing structures like lamp posts, minimizing installation requirements and conserving resources.
• Utilizes Digital Beamforming (DBF) for improved anti-jamming capabilities and multi-beam transmission for enhanced detection performance.
• Simultaneously transmits target data to multiple cameras, enabling comprehensive, multi-directional detection and surveillance.
SZMID-DM101 Ground Security Radar: Advanced Surveillance for Key Area Protection
The SZMID-DM101 Ground Security Radar is a cutting-edge active phased array radar system, utilizing MIMO technology and Digital Beamforming (DBF) to provide high-precision detection and tracking of both pedestrians and vehicles. Specifically designed for critical areas such as borders, perimeters, checkpoints, and military bases, this radar excels in delivering accurate target information, including direction, distance, and speed. Its advanced tracking capabilities offer essential decision-making data for border defense personnel and security forces, ensuring efficient protection of sensitive areas.
With exceptional detection accuracy, the SZMID-DM101 maintains precise tracking even for long-range targets, ensuring reliable performance in all weather conditions. Whether operating at night or in challenging environments like rain, snow, fog, and dust, this radar provides continuous, 24/7 security monitoring.
Its lightweight and compact design allows for easy installation on existing infrastructure, such as light poles, reducing the need for additional resources. The system's portability and minimal installation requirements make it highly adaptable for a wide range of security needs.
Equipped with DBF technology, the SZMID-DM101 enhances its anti-jamming capabilities by utilizing multi-beam transmission, ensuring stable and interference-free operation. Furthermore, its ability to coordinate with multiple cameras simultaneously enables multi-functional and multi-directional detection, making it a comprehensive security solution for ground surveillance.
| Technical Parameter | SZMD-DM101 (A-type) | SZMD-DM101 (B-type) |
| Operating System | Phased Array System (Azimuth Phased Scanning) | Phased Array System (Azimuth Phased Scanning) |
| Operating Frequency Band | C-band | C-band |
| Effective Detection Capability | 100~1.5 km (Pedestrians) | 100~3.0 km (Pedestrians) |
| 100~2.5 km (Vehicles) | 100~5.0 km (Vehicles) | |
| Azimuth Coverage | 90°/180°/270°/360° | 90°/180°/270°/360° |
| Elevation Coverage | ≥18° | ≥9° |
| Detection Speed | 0.5m/s ~ 40m/s | 0.5m/s ~ 40m/s |
| Azimuth Accuracy | ≤ 1.0° | ≤ 1.0° |
| Data Rate | ≥2Hz | ≥2Hz |
| Data Interface | RJ45/1 Gigabit Ethernet | RJ45/1 Gigabit Ethernet |
| Power Supply | ≤55W (Power Consumption) AC 220V (Input) | ≤60W (Power Consumption) AC 220V (Input) |
| Operating Temperature | -40℃ ~ 55℃ | -40℃ ~ 55℃ |
| Weight | 5.5kg | 5.5kg |
| Product Dimensions | 324 x 86 x 436 mm | 324 x 86 x 436 mm |
