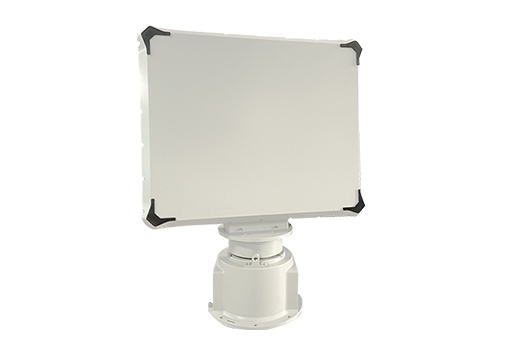

SZMID-DK223
• Low-Altitude Security Radar
• Configurable Frequency Range: Supports customizable frequency bands such as C-band, X-band, and S-band, tailored for diverse operational needs.
• Extended Detection Range: Capable of identifying drones and low-altitude targets from 100m up to 3.0km, ideal for land, maritime, and airspace surveillance.
• User-Friendly Setup: Designed for fast deployment and flexible detection, providing reliable monitoring over long distances.
• All-Weather Operation: Engineered to function continuously under challenging environmental conditions, with intelligent scheduling options for efficient use.
• Advanced DBF Technology: Equipped with Digital Beamforming (DBF) technology for superior anti-interference capabilities, utilizing multi-beam signal transmission.
SZMID-DK223 Low-Altitude Security Radar: Precision UAV Detection for Critical Areas
The SZMID-DK223 Low-Altitude Security Radar is a cutting-edge system designed for the detection, early warning, and precise target tracking of UAVs in critical areas such as borders, airports, and military bases. This radar provides real-time, highly sensitive target detection and continuous tracking, ensuring timely and accurate information on UAV movements. It is specifically engineered for identifying low and slow small aircraft, also known as low-altitude warning radar, and can operate efficiently around the clock in various environmental conditions, including night, rain, snow, fog, and dusty surroundings.
With customizable configurations available in C-band, X-band, and S-band, the SZMID-DK223 offers versatility to meet the demands of different operational scenarios. Its advanced sensor technology allows for long-distance monitoring, effectively detecting UAVs within a range of 100 meters to 3 kilometers. This makes it suitable for a wide range of applications across land, sea, and air domains.
The system is designed for high convenience and flexibility, providing fast setup and remote detection capabilities. It enables easy deployment and delivers reliable performance even in remote or challenging environments. Its robust environmental adaptability ensures continuous operation under harsh weather conditions, supporting 24/7 monitoring with intelligent scheduling options for optimal performance.
Equipped with Digital Beamforming (DBF) technology, the radar significantly enhances anti-jamming capabilities by utilizing multi-beam transmission, resulting in improved resistance to interference. Additionally, the radar boasts high detection accuracy, offering anti-clutter capabilities and delivering precise, real-time tracking and trajectory monitoring of UAV targets. This makes the SZMID-DK223 an essential solution for securing critical areas against aerial threats.
| Technical Parameter | SZMID-DK223 (X-band) | SZMID-DK223 (S-band) | SZMID-DK223 (C-band) |
| Operating System | Phased Array System (Azimuth Mechanical Scanning + Elevation Phased Scanning) | Phased Array System (Azimuth Mechanical Scanning + Elevation Phased Scanning) | Phased Array System (Azimuth Mechanical Scanning + Elevation Phased Scanning) |
| Operating Frequency Band | X-band | S-band | C-band |
| Effective Detection Capability (Drones) | 100m ~ 2.0km | 150m ~ 5.0km | 100m ~ 1.5km |
| Azimuth Coverage | 0° ~ 360° | 0° ~ 360° | 0° ~ 360° |
| Elevation Coverage | 0° ~ 40° | 0° ~ 40° | 0° ~ 30° |
| Detection Speed | 0.5m/s ~ 30m/s | 0.5m/s ~ 45m/s | 0.5m/s ~ 30m/s |
| Spatial Angle Accuracy | ≤ 1.0° | ≤ 1.0° | ≤ 1.0° |
| Data Rate | Better than 4s/round | Better than 4s/round ~ 6s/round | Better than 5s/round |
| Data Interface | RJ45/1 Gigabit Ethernet | RJ45/1 Gigabit Ethernet | RJ45/1 Gigabit Ethernet |
| Power Supply | ≤200W (Power Consumption) 220V (Input) | ≤160W (Power Consumption) 220V (Input) | ≤90W AC (Power Consumption) 220V (Input) |
| Operating Temperature | -40℃ ~ 55℃ | -40℃ ~ 55℃ | -40℃ ~ 55℃ |
| Weight | ≤43.0kg | ≤60.0kg | ≤22.0kg |
| Product Dimensions | 700 x 243 x 496 mm | 782 x 434 x 882 mm | 407 x 244 x 485 mm |
