SZMID-BH216X
• Maritime Border Radar
• Long-Range Precision Tracking: Provides highly accurate tracking for distant targets, delivering essential data for border defense operations.
• DBF Technology with Multi-Beam: Utilizes Digital Beamforming (DBF) technology with multi-beam transmission to boost anti-jamming performance and ensure stable detection.
• Active Phased Array System: Features an advanced active phased array system for enhanced radar detection capabilities and overall performance.
• Optimized Reliability and Efficiency: Designed with a focus on balancing detection accuracy, reliability, usability, and cost-efficiency for a dependable and effective maritime surveillance solution.
SZMID-BH216X Maritime Border Radar: Advanced 3D Surveillance and Long-Range Detection

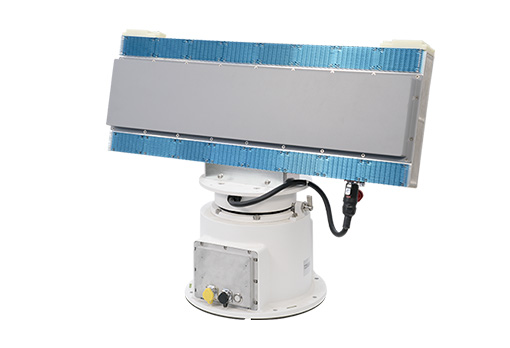

The SZMID-BH216X Maritime Border Radar is a sophisticated radar system, composed of a radar array and turntable, designed for monitoring pedestrians, vehicles, and drones in vital areas such as borders, airports, and military bases. It also plays a crucial role in maritime defense, providing comprehensive regional 3D control. This advanced radar system accurately delivers key target information, including orientation, distance, altitude, and speed, making it an indispensable tool for border security and defense operations.
The SZMID-BH216X offers high-precision tracking of long-distance targets, delivering reliable data for effective decision-making in defense scenarios. With its advanced Digital Beamforming (DBF) technology, the radar enhances its anti-jamming capabilities by transmitting multi-beam signals, ensuring uninterrupted detection even in challenging environments.
Equipped with an active phased array system, this radar improves detection performance and accuracy. Continuous refinement of the SZMID-BH216X has led to the perfect balance of detection effectiveness, product reliability, ease of use, and cost-efficiency, making it a reliable and economical choice for ground and maritime surveillance.
| Model | SZMD-BH216X |
| Operating System | Phased Array System (Azimuth Mechanical Scanning + Elevation Phased Scanning) |
| Operating Frequency Band | X-Band |
| Effective Detection Range | ≥5.0 km (Drones) |
| ≥8.0 km (Pedestrians) | |
| ≥10.0 km (Vehicles) | |
| ≥15.0 km (Ships) | |
| Detection Speed | 0.5 m/s ~ 83 m/s |
| Azimuth Accuracy | ≤ 0.3° (Search); ≤ 0.3° (Tracking) |
| Elevation Accuracy | ≤ 1.0° (Search); ≤ 0.5° (Tracking) |
| Data Rate | ≤ 5s/round |
| Data Interface | RJ45/1 Gigabit Ethernet |
| Power Supply | ≤ 250W (Power Consumption), AC 220V (Input) |
| Operating Temperature | -40℃ ~ 60℃ |
| Weight | ≤ 26 kg |
| Dimensions （L*W*H） | 812 x 370 x 638 mm |
