SZMID-501C

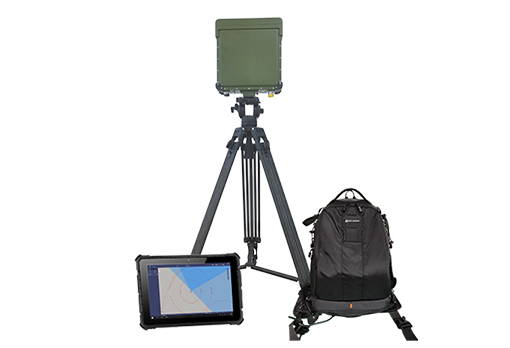

The SZMID 501C is a portable mobile monitoring radar designed for quick and efficient deployment in critical areas such as borders, airports, and military bases. Weighing only 17 kg, this radar system is remarkably lightweight and compact, making it ideal for individual soldiers or small teams requiring high mobility. Its modular design includes a radar array, tripod, and portable backpack, allowing for simple setup without the need for wiring. The device can be easily set up within five minutes and is operable in a wide range of conditions, with a working temperature tolerance down to -22 degrees Celsius.

Equipped with a large 42AH battery, the SZMID 501C offers extended operation with a single battery lasting up to 5 hours at room temperature. Optional spare batteries can further extend its operating time, ensuring continuous monitoring when needed. The radar utilizes DBF technology with multi-beam transmission to provide real-time positioning and orientation information, significantly enhancing its anti-jamming capabilities. This advanced technology enables the radar to detect and track targets accurately, providing essential surveillance in key areas.

The SZMID 501C includes a wireless transmission module that facilitates remote control and operation. This feature allows the radar to transmit target location and characteristic information wirelessly to a display control system. The terminal software is designed for simplicity, offering an intuitive user interface that is easy to learn and operate. The radar's portability and rapid setup make it an essential tool for surveillance, vigilance, and target indication in various field conditions, ensuring comprehensive security coverage with minimal operational constraints.
