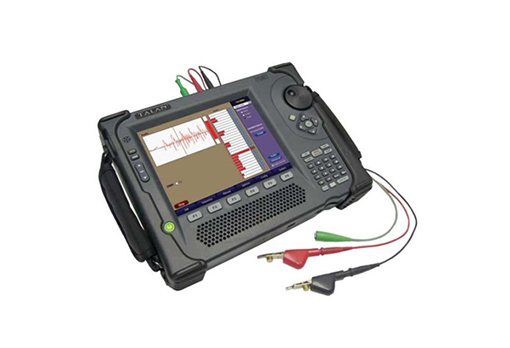

REI TALAN3.0
• Telephone Anti-Eavesdropping Analyzer
• Detects unauthorized audio signals on lines, identifying potential eavesdropping devices through digital decoding.
• Highlights impedance anomalies on lines, allowing for comparison with historical data to spot irregularities.
• Amplifies audio signals between 20Hz and 20KHz with up to 80dB gain, providing enhanced audio analysis capabilities.
• Offers spectrum analysis up to 85MHz and time-domain graphs for AM and FM signals, aiding in detailed signal inspection.
• Detects electronic devices connected to lines quickly and effectively, ensuring thorough inspection for eavesdropping devices.
• Provides essential multimeter functions like voltage, current, capacitance, and resistance testing for comprehensive line diagnostics.
• Scans RF signals up to 8GHz, displaying signal levels over time to locate transmitters and potential threats.
• Serves as a harmonic receiver to locate electronic devices on lines, providing precise distance and position detection for hidden devices.
SZMID - REI TALAN 3.0 : Comprehensive Detection for Securing Communication Lines
The SZMID - REI TALAN 3.0 is a cutting-edge phone and line analyzer designed to detect and locate unauthorized tampering and security vulnerabilities across digital, analog, and VoIP phone systems. This advanced tool integrates essential diagnostic features such as voltage, current, and resistance measurement, alongside non-linear junction detection and digital demodulation technology. With its intuitive screen and user-friendly operation, the TALAN 3.0 quickly identifies hidden threats within phone lines, making it an indispensable asset for maintaining secure communications.
The device allows for efficient analysis by comparing multiple test results across different phone lines, enabling users to swiftly identify any anomalies that may indicate a security breach. Weighing just 2.6 kg, the TALAN 3.0 is portable and highly practical for field operations, and its data can be exported for further analysis and reporting. This integration of multiple security test functions into a single, efficient unit makes the device ideal for comprehensive line monitoring and protection.
The TALAN 3.0 is perfectly suited for various applications, including telephone line analysis, wiretapping detection, electronic monitoring, and general information protection. Its powerful capabilities ensure thorough eavesdropping detection and administrative protection, making it a reliable solution for securing critical communication infrastructure.
| Product Model | REI TALAN3.0 |
| Control System | |
| External Storage | Compact Flash Type III, USB mass storage device |
| Internal Storage | 64 MB SDRAM (OS), 64 MB Flash |
| Main Computer | 32-bit RISC processor, 520 MHz |
| Frame Rate | 50 fps |
| Digital I/O | |
| USB | USB device (Type A) supports external keyboard, mouse, and USB mass storage; USB host (Type B) reserved for future use |
| Network | 10/100 Ethernet controller for IP packet detection |
| Analog I/O | |
| Headphone Output | 3.5 mm mono connector |
| Microphone Input | 3.5 mm mono input |
| User Interface | |
| Test Input | Dual MOD8: supports 2, 4, 6, and 8 wire shielded module telephone jacks |
| Hard Keys | 6 soft menu keys, 5-button quadrant navigation, and other dedicated keys |
| Encoder | High-resolution optical encoder with integrated touchscreen and stylus |
| SMB RF Input | Connects to 8 GHz broadband detector RF/antenna |
| Expansion Port | Supports communication and measurement with future accessories |
| Type | Standard socket: ring, tip, and ground |
| RF System | |
| Spectrum Analyzer | Dual conversion, superheterodyne receiver |
| Sensitivity | -100 dBm |
| Scan Time | 2 seconds |
| Bandwidth | 18 kHz |
| Step Size | 1 kHz |
| Broadband Detector | |
| Line Level Test | 100 kHz to 600 MHz |
| RF SMB Input | Up to 8 GHz |
| Sensitivity | -65 dBm |
| Digital Multimeter | |
| Fast Response Auto-ranging | 500 ms sampling rate |
| AC/DC Voltage | 0 to 250V max |
| AC/DC Current | 0 to 300 mA max |
| Capacitance | 50 pF to 40 μF |
| Resistance | 0 to 42 MΩ |
| Yaw Generator | |
| Modulation | Fixed voltage or variable rate sine wave (10 Hz - 300 Hz) |
| Output Ceiling (Shielded) | ±65VDC, ±33VAC |
| Photoelectric Isolation | Direct digital control, high voltage DAC |
| Output Ceiling | ±80 V |
| Audio | |
| Filter | Dual conversion, superheterodyne receiver |
| Gain | -100 dBm |
| Audio Bandwidth | 2 seconds |
| AGC | 18 kHz |
| Power | |
| Removable Battery | Inspired Energy lithium-ion rechargeable battery model Ni2040HD29 |
| Rated Universal Power Supply | 100-240 VAC, 50-60 Hz |
| External Input | 15VDC @ 3A 10.8V, 8.7Ah, 94Wh |
| Mechanical Parameters | |
| Dimensions | 25.4 cm x 32.8 cm x 6.9 cm |
| Case Dimensions | 49.5 cm x 37.8 cm x 13.7 cm |
| Total Weight (with Accessories) | 7.1 kg |
| Weight | 2.7 kg (with battery) |
| Operating Temperature | 0°C to +50°C |
