MDS-TS360-C
• Wired Microseismic Life Detector
• Precise Detection of Vital Signs:Accurately identifies subtle heartbeats and breathing patterns, even from individuals who remain completely still within a vehicle.
• Comprehensive Vehicle Compatibility:Supports multiple operational modes, making it suitable for all types of trucks, regardless of their size, length, or height.
• Exceptional Interference Resistance:Operates consistently in harsh environments, unaffected by temperature changes, humidity, noise, or variations in vehicle load and cargo quality, ensuring stable performance.
• Advanced Security Mechanisms:Employs robust encryption and data protection systems to ensure the confidentiality of information and the safety of operations.
• Easy to Operate Interface:Features a straightforward and intuitive user interface, with clear prompts to facilitate smooth operation by all personnel.
• Expandable System Integration:Provides powerful expansion options for connecting with additional equipment and supports seamless integration with video monitoring and alarm systems for enhanced security management.
SZMID - MDS-TS360-C Wired Microseismic Life Detector: Precision Vehicle Inspection with Reliable Wired Connectivity
The SZMID MDS-TS360-C is a state-of-the-art wired microseismic life detection system, designed to meet the rigorous security needs of supervision sites, especially in vehicle inspection scenarios. This advanced system works by identifying the rhythmic vibrations generated by a hidden person’s heartbeat. These micro-vibrations are transmitted through the vehicle's suspension, chassis, and other structural points. By connecting the system’s sensors directly to the vehicle, the vibrations are captured and transmitted via data cables to the analysis platform. The system’s software focuses on vibrations within the precise frequency range of heartbeats, ensuring high detection accuracy. If the presence of life is detected, the result is immediately displayed on the control terminal, along with an audible alarm for rapid response.
The MDS-TS360-C system comprises several key components, including a control management platform (integrating hardware and software), one wired ground sensor, four wired vehicle sensors, an audio-visual alarm system, a wired telescopic reel, and other essential modules. This comprehensive setup ensures seamless operation across various inspection tasks.
Engineered for reliable performance, the system is capable of detecting human cardiopulmonary activity even when the individual remains completely still. This makes it highly effective in scenarios where suspects attempt to avoid detection by staying motionless.
The broad compatibility of the system ensures that it supports all vehicle types and sizes, offering multiple operational modes to meet the needs of different truck configurations, regardless of their length, height, or structure.
The MDS-TS360-C offers superior anti-interference capabilities, maintaining stable performance even in harsh conditions. Its operation remains unaffected by environmental factors such as temperature variations, humidity, or background noise, and it functions reliably regardless of the vehicle’s weight or the quality of the cargo being transported.
With a focus on security, the system integrates robust verification protocols and data protection mechanisms, ensuring both operational safety and information confidentiality during inspections.
The user-friendly design provides operators with an intuitive interface, complete with helpful prompts, enabling quick and easy use without requiring extensive training.
Designed with expandability in mind, the MDS-TS360-C offers powerful interfaces for connecting to additional equipment. It seamlessly integrates with video surveillance systems and alarm networks, providing enhanced security and monitoring capabilities through both hardware and software integration.
This wired version of the MDS-TS360-C delivers dependable, high-precision life detection through secure, reliable data transmission, making it an essential tool for vehicle inspection at security checkpoints.
Product Model | MDS-TS360-C |
Component | Description |
Analysis Processing System Host | Industrial-grade integrated embedded industrial computer, equipped with 120GB HDD; dual-core 2.40GHz processor; 4GB RAM; includes 6 USB ports, WiFi antenna, headphone jack, RJ-45 port, VGA port, HDMI port, with a set of wireless standard keyboard and mouse. |
Integrated Touchscreen Display | 23.6-inch touchscreen, resolution 1920×1080, brightness 300cd/m2 |
Core Processing Software | Intrusion Detection and Alarm: Sensor-based data collection and analysis of vehicles, displaying test results on the monitor, requiring clear and explicit results with simultaneous audio alarms; Record of Detection: Forms a detection log; Data Transmission: Test data can be transferred to third parties. |
Data Acquisition and Analysis System | Acquisition analysis frequency range: Precise collection from 0.5HZ to 20HZ; Effective continuous vibration frequency; Signal Conversion: Converts analog signals to digital signals. |
Wired Sensors | Wired sensors: 4 vehicle sensors, 1 ground sensor |
Wired Sensor Data Transmission System | Low voltage, low attenuation, temperature tolerance: -40° to +50° |
Smart Alarm System | High-decibel voice alarm supporting more than 3 types of voices (selectable); audio and visual signal indicators. |

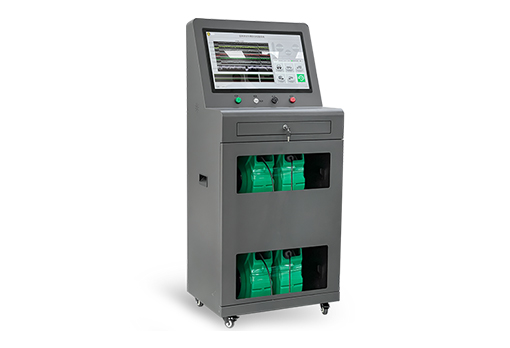

Cabinet | Intelligent integrated design, components have smooth and clean surfaces, clear symbols and markings, fully assembled functional parts, tightly connected. Equipped with industrial-grade universal wheels (4 movable ones). Cabinet includes industrial PC power indicator light, system client power indicator light. Modular design inside the cabinet, equipped with related electrical control devices. |
