MDPB-ST
• Portable Cellphone Jammer
• Segmented frequency coverage for 2G, 3G, 4G, and 5G, ensuring comprehensive signal blocking.
• Supports custom frequency adjustments from 80MHz to 6000MHz with modular design for flexible configuration.
• Dual power system allows battery mode operation, providing 1.5 to 2 hours of use, with a digital display for real-time battery and voltage monitoring.
• Advanced cooling system with high-conductivity aluminum heat sink and dual high-power fans to maintain a stable operating temperature below 55°C.
• Compact and portable, ideal for on-the-go signal jamming in various environments.

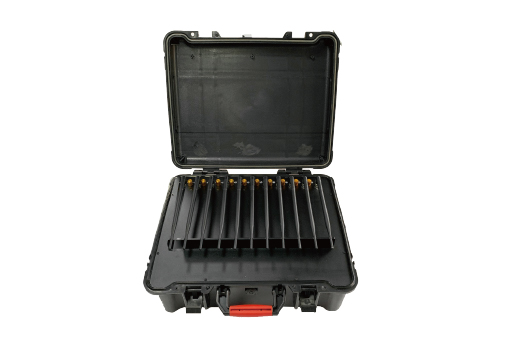

SZMID - MDPB-ST Portable Cellphone Jammer: High-Performance Signal Blocking for Secure Environments
The SZMID - MDPB-ST is a high-performance portable cellphone jammer designed for both indoor and outdoor use, offering effective signal blocking to protect communication security and privacy in designated areas. Utilizing advanced wideband white noise interference technology, this device efficiently blocks all common mobile communication signals, including 2G, 3G, 4G, 5G, and WiFi (2.4GHz + 5.8GHz). Its modular design provides high integration, enabling flexible customization of frequency bands ranging from 80MHz to 6000MHz to meet specific user requirements.
Equipped with imported power amplifiers and ICs, the MDPB-ST offers robust performance and stability. Each module is isolated with shielding boxes to prevent interference, while standing wave protection technology ensures durability, even when unloaded. The dual power supply system allows the device to switch to battery mode, providing 1.5 to 2 hours of continuous operation. The digital display shows real-time voltage and battery status, giving users full control over the device’s performance.
For extended use, the device features a high-efficiency cooling system, utilizing an aluminum alloy heat sink and two high-power fans that maintain the operating temperature below 55°C, ensuring stable long-term functionality. Despite its powerful performance, the MDPB-ST is designed for portability, with a lightweight structure and simple plug-and-play operation using a built-in 3dBi high-gain antenna.
Ideal for secure environments requiring reliable signal blocking, this device guarantees military-grade quality, offering peace of mind in sensitive applications.
Product Model | MDPB-ST |
Shielding Objects | GSM, 2G,3G, 4G,5G,WIFI, GPS, Lojack, 433MHz, 868MHz |
Customization Support | Yes |
Relative Humidity | ≤90% (RH) |
Atmospheric Pressure | 86-106kPa |
Location Suitability | Suitable for both indoor and outdoor use |
Temperature Range | -10°C to +55°C |
Power Supply | AC 220V or DC 24V (lithium battery) |
Total Power Consumption | 320W |
Lithium Battery | 24V 20AH; 1.5-2 hours of use when fully charged |
Main Unit Dimensions | 540mm x 440mm x 200mm |
Main Unit Weight | 13.2 kg |
Antenna Length | 293mm |
Antenna Gain | 3dBi |
Packaging Dimensions/Weight | 580mm x 500mm x 260mm / 15.1 kg |
Total Weight | 18 kg |
