MDPB-250W
• Mobile Phone Blockers
• High-Power Modular Design: Each channel operates at 30W, delivering a total of 250W with advanced power amplifiers and ICs for maximum efficiency and performance.
• Standing Wave Protection: Ensures safe, continuous operation, making it ideal for extended use in demanding environments.
• Industrial-Grade Components: Features robust power supplies and an advanced cooling system for reliable, uninterrupted operation.
• Enhanced Signal Reach: High-gain panel antennas increase coverage and blocking effectiveness for optimal performance.
• Durable Construction: Equipped with long-lasting switch components to withstand frequent use without compromising functionality.
• Remote Management Option: Optional network management control allows for remote switching and scheduling, with customizable frequencies to meet regional requirements.

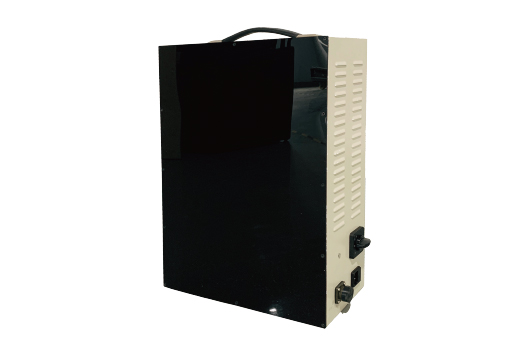

SZMID - MDPB-250W High-Power Mobile Phone Blocker: Effective Shielding for Challenging Environments
The SZMID - MDPB-250W is a medium and high-power mobile phone blocker specifically designed for difficult shielding areas. Utilizing advanced broadband scanning technology, this device effectively cuts off wireless signals for 2G, 3G, 4G, 5G mobile networks, as well as WiFi (2.4GHz, 5.2GHz, and 5.8GHz) and other wireless devices such as pinhole cameras. Once activated, it causes disruptions such as network searching, no signal, and loss of service, ensuring comprehensive security without interfering with other critical electronic systems. Constructed using brand-name imported components, the MDPB-250W guarantees stable, long-lasting performance, and its signal radiation is as safe as that of a mobile phone, posing no harm to human health.
This powerful shielding system features 30W per channel, with a total transmission power of 250W, amplified through imported power amplifiers and IC technology. It is designed for continuous use, powered by a high-quality industrial-grade switching power supply with specifications of AC220V3A to 24VDC/20A. The system integrates standing wave protection, safeguarding the equipment from damage even in unloaded conditions.
The MDPB-250W is equipped with an advanced heat dissipation system that utilizes a high-efficiency aluminum alloy radiator with six large-diameter heat sinks, ensuring reliable 24/7 operation. The high-gain panel antennas provide excellent coverage, with a 120° signal range both vertically and horizontally.
Built to last, the MDPB-250W uses durable copper switch knobs with silver alloy contacts, providing excellent electrical conductivity and resistance to oxidation and high temperatures. The device also offers optional network control, allowing remote operation and scheduling via an intelligent shielding management system. With the ability to customize frequencies based on customer requirements, the MDPB-250W delivers unparalleled performance and flexibility in signal blocking.
Product Model | MDPB-250W |
Shielding Objects | GSM, 2G,3G, 4G,5G,WIFI, GPS, Lojack, 433MHz, 868MHz |
Customization Support | Yes |
Total Output Power | 250W |
Power Supply | 220VAC to 24VDC/42A, built-in industrial power adapter |
Total Power Consumption | ≤750W at 220V/3.5A |
Relative Humidity | ≤85%; the main unit should be kept dry when stored |
Environmental Temperature | -30℃ to 60℃ |
Cooling | Built-in 6 cooling fans |
Main Unit Dimensions | 500mm x 350mm x 160mm |
Antenna | Built-in directional array antenna |
Antenna Gain | ≥7dBi |
Main Unit Weight | 18 kg, excluding packaging |
Cleaning and Maintenance | Use only a damp cloth for cleaning; no chemical solvents needed, no maintenance required |
