MDPB-12
• Wifi User Blocker
• Customizable Frequency Bands: Offers flexible frequency band customization to meet specific international requirements.
• Powerful Output: Features imported power amplifiers, with each channel generating 3 watts, resulting in a total output of 36 watts for effective signal blocking.
Standing Wave Protection: Equipped with anti-damage standing wave protection technology to ensure enhanced safety and efficient operation.
• Flexible Power Options: Supports both 110V and 220V AC power sources, converting to 12-24V DC for versatile power adaptability.
• Efficient Cooling System: Built with five high-efficiency cooling fans to maintain optimal operating conditions and prevent overheating.
• High-Performance Antennas: Uses high-performance whip antennas for improved shielding effectiveness, with optional network management capabilities for remote control and advanced monitoring.

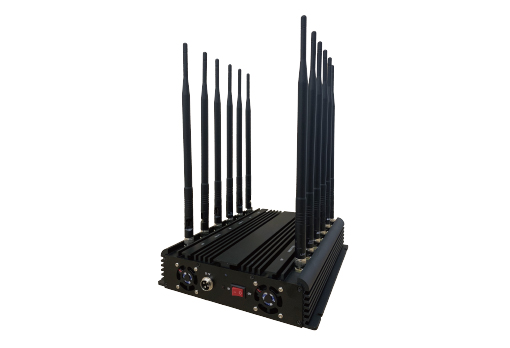

SZMID - MDPB-12 WiFi and Mobile Signal Blocker: Comprehensive Multi-Frequency Interference Solution
The SZMID - MDPB-12 is a high-performance WiFi and mobile signal blocker, utilizing advanced broadband scanning technology to disrupt wireless connections for a wide range of devices. It effectively blocks 2G, 3G, 4G, 5G mobile signals, as well as 2.4GHz and 5.8GHz WiFi, wireless pinhole cameras, and other wireless communication devices. By cutting off these signals, it creates a "no signal" or "no service" environment, ensuring the protection of privacy and prevention of unauthorized transmissions. Developed with imported components and produced through independent research, this device offers exceptional durability and stable performance for long-term use.
Each channel of the MDPB-12 delivers 3 watts of power, totaling 36 watts, using high-quality imported power amplifiers for robust signal blocking capabilities. Its versatile power supply system supports both 110V and 220V AC inputs, converting to 12-24V DC, making it adaptable to various power requirements. Equipped with standing wave protection technology, the device is designed for enhanced safety, preventing damage even when operating unloaded.
The MDPB-12 is designed with a highly efficient cooling system, incorporating a large aluminum alloy radiator and five built-in cooling fans to maintain optimal operating temperatures. Its high-performance whip antennas further improve the blocking effectiveness, ensuring wide coverage of up to 200 square meters in areas without nearby cell towers or signal amplifiers. For added convenience, the device can be integrated with an intelligent network control system, allowing for remote management and scheduling of its operation.
Ideal for protecting sensitive environments such as conference rooms, exam halls, and corporate offices, the SZMID - MDPB-12 offers a comprehensive solution to block unauthorized wireless communications, ensuring security and privacy at all times.
Product Model | MDPB-12 |
Shielding Objects | GSM, 2G,3G, 4G,5G,WIFI, GPS, Lojack, 433MHz, 868MHz |
Customization Support | Yes |
Power Supply | AC 220V/DC 27V 10A |
Power Consumption | 150W |
Main Unit Weight | 3.8 kg |
Main Unit Dimensions | 280mm (L) × 240mm (W) × 60mm (H) |
Omnidirectional Baton Antenna Length/Gain | 380mm / 3dBi |
Blocking Range | 1-40 meters (depends on the local mobile network signal strength) |
