MDPB-10W

• Phone Signal Blockers
Cellphone Interception Systems: Customizable frequency bands tailored to meet specific blocking requirements.
• Advanced standing wave protection ensures device safety and prolonged service life.
• Each channel outputs 10W, with a total power of 100W, supported by high-grade power amplifiers and IC components for superior performance.
• Continuous 24/7 operation made possible by six high-efficiency heat sinks.
• High-gain omnidirectional antennas with a 120-degree coverage angle for optimal signal blocking.
• Optional remote network management for smart control of power and task scheduling, covering distances from 1 to 50 meters.

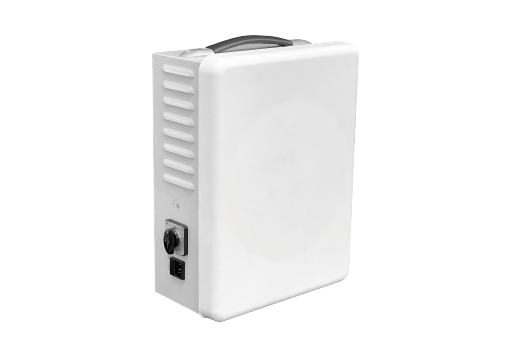

SZMID - MDPB-10W Phone Signal Blocker: Advanced Shielding Solution for Comprehensive Wireless Interference

The SZMID - MDPB-10W is an advanced   cell phone jammer  and mobile signal blocker designed to disrupt wireless communication across a wide range of frequencies, including 2G, 3G, 4G, 5G (5G Jammers, and WiFi bands (2.4G, 5.2G, 5.8G), as well as wireless microphones, hidden cameras, and other covert devices. By utilizing broadband scanning technology, it effectively blocks wireless connections, leading to network searches, lack of signal, or no service system messages on affected devices. With carefully selected, high-quality imported components and proprietary research and development, the device delivers reliable and durable performance over long periods.

Each of the MDPB-10W’s 10 channels outputs 10W of power, totaling 100W, using imported power amplifiers and IC technology to ensure high efficiency and stable operation. It is powered by an industrial-grade AC220V3A to 24VDC/20A switching power supply. Built-in standing wave protection ensures the system remains undamaged even in unloaded conditions. The device is equipped with six large, high-efficiency aluminum heat sinks, which enable continuous use 24/7 without performance degradation.

The signal jammer/blocker uses a super-gain panel antenna, offering 120-degree coverage both vertically and horizontally. Additionally, the MDPB-10W can be customized according to customer needs, supporting various signal shielding configurations. Optional network control allows users to manage the device remotely, enabling smart features such as on/off scheduling via an intelligent management system.

Ideal for use in secure locations like meeting rooms, auditoriums, courts, libraries, and examination rooms, the SZMID - MDPB-10W is also suitable for sensitive areas like gas stations, oil fields, and storage facilities. It is particularly valuable in government, military, prison, and public security environments where mobile communications must be restricted to ensure operational security.

Product ModelMDPB-10W
Shielding ObjectsGSM, 2G,3G, 4G,5G,WIFI, GPS, Lojack, 433MHz, 868MHz
Customization SupportYes
Total Output Power100W
Power SupplyAC220V3A to 24VDC/20A
Total Power Consumption≤500W at 220V/3A
Relative Humidity≤85%
Environmental Temperature-30℃ to 60℃
CoolingBuilt-in 6 cooling fans
Main Unit Dimensions400mm x 300mm x 165mm
AntennaBuilt-in directional array antenna
Antenna Gain≥7dBi
Main Unit Weight8Kg, excluding packaging
