MDAJ-800
• Walk Through Metal Detector
• Precise Target Localization: Features eight overlapping grid detection zones with dual-side transmission and reception, providing accurate detection and visual display of target locations.
• Microprocessor-Controlled Scanning: Utilizes advanced microprocessor technology for precise control of electromagnetic waves. The sensitivity settings can be easily adjusted via the control panel, ensuring reliable and stable performance.
• Infrared Composite Circuit Design: Equipped with an infrared scatter device for quick sensing and automatic recognition, significantly reducing false positives and negatives.
• Digital Pulse Technology: Includes a digital signal processing filter system that ensures strong resistance to electromagnetic interference, providing stability even in challenging environments.
• Adjustable Sensitivity: Each detection zone’s sensitivity can be independently adjusted (0-255 levels), allowing for precise customization. Overall sensitivity can also be modified for convenience.
• Password Protection: System parameters and sensitivity settings are protected by a password. Users can set their own password, with a master password available if needed.
• Modular Design: Designed for easy installation, maintenance, and troubleshooting, thanks to its modular structure.
• Low Magnetic Field Emission: Complies with international safety standards and uses low magnetic field technology, safe for individuals with pacemakers, pregnant women, and sensitive materials like floppy disks or film.
SZMID - MDAJ-800: Precision Walk-Through Metal Detector for Enhanced Security Screening

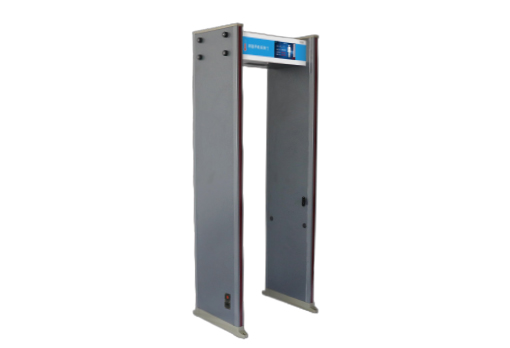

The SZMID MDAJ-800 is an advanced walk-through metal detection system, designed to accurately detect hidden metal objects on individuals passing through its gates. As a fixed-installation security door, the MDAJ-800 is primarily used in high-security environments to screen individuals for concealed metal items. When a person passes through the detector with metal exceeding preset parameters in terms of weight, quantity, or shape, the system instantly triggers an alarm and displays the exact location of the detected object, allowing security personnel to quickly identify and locate prohibited items.
This device features eight overlapping detection zones with double-sided transmission and reception, ensuring precise target localization. The detected objects are visually displayed, making it easy for security teams to determine the location of concealed items on the body.
The microprocessor technology embedded within the MDAJ-800 allows for finely-tuned control of the electromagnetic waves used during scanning. The speed and sensitivity of the scans can be precisely adjusted through the control panel, ensuring that the system remains flexible, reliable, and stable under various conditions.
To enhance accuracy and efficiency, the composite circuit design integrates an infrared scatter device, which allows for rapid sensing and automatic recognition by the system, greatly reducing false alarms and missed detections.
Equipped with digital pulse technology, the MDAJ-800 incorporates a sophisticated digital signal processing filter system that offers excellent protection against electromagnetic interference. The system's design also ensures high resistance to environmental disturbances and impacts, making it resilient even when not in use.
The adjustable sensitivity of the device provides users with full control over detection settings. Each zone's sensitivity can be independently adjusted on a scale from 0 to 255, while the overall sensitivity can be modified to suit specific security requirements.
For added security, the MDAJ-800 includes a password protection function. Only users who enter the correct password can alter the system parameters or sensitivity levels, with the option to set custom passwords. If forgotten, a master password is available to unlock the system.
The MDAJ-800 is designed with a modular structure, simplifying installation, maintenance, and troubleshooting. Its low magnetic field emission technology ensures the safety of individuals with pacemakers, pregnant women, and sensitive items such as floppy disks, films, and videotapes.
This device is built to comply with all current international safety standards and provides strong resistance to environmental interference, ensuring stable operation in a variety of challenging conditions. The SZMID MDAJ-800 is an ideal choice for ensuring enhanced security and precise metal detection in high-risk areas.
Product Model | MD-800 |
Working Voltage | AC220V 50/60Hz |
Power | ≤35W |
Signal Frequency | 6-9KHz (adjustable) |
Operating Temperature | -10℃ to 55℃ |
Storage Temperature | -25℃ to 75℃ |
Total Packaging Weight | Approximately 70KG (cardboard box) |
Shipping Weight | Approximately 95KG (wooden crate) |
External Dimensions | 2225mm * 860mm * 560mm |
Passage Dimensions | 2000mm * 700mm * 530mm |
