DZ08-Pro
• 8-Channel Anti-Drone Gun
• Combines drone detection and jamming in a single device for complete low-altitude security.
• Dual-channel detection and eight-channel jamming, covering 95% of drone signal frequencies.
• Equipped with a high-gain directional antenna, capable of detecting drones up to 3000 meters and jamming up to 2000 meters.
• Selectable modes for forced return, landing, hover, and video disruption.
• Powered by a high-capacity rechargeable battery with over 60 minutes of continuous operation.
• Compact and portable design for high mobility and use across various terrains.
• One-touch automatic search with smart detection and an audible alarm for suspicious signals.
• Fast response time, capable of operating in foggy and light rain conditions.

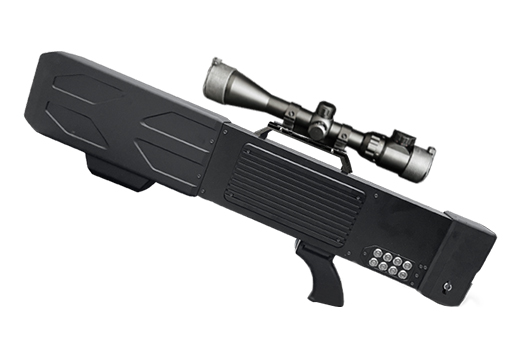

8-Channel Anti-Drone Gun: Comprehensive UAV Detection and Interference System
The 8-Channel Anti-Drone Gun combines advanced UAV detection and strike functions to deliver all-around low-altitude airspace protection. Its non-destructive interference technology targets the flight control and signal transmission systems of drones, causing them to either land vertically or return automatically. Using a passive radio spectrum monitoring system, the detection terminal intercepts remote control and image transmission signals without emitting active waves. The strike component disconnects the drone from its controller, cutting off all signal communication, preventing the transmission of aerial videos or pictures, and forcing the UAV to land, hover, or turn back.
With dual-channel detection and six-channel interference, the device can disrupt more than 95% of drone models across commonly used signal bands. Equipped with a high-gain directional antenna, it can detect drones at distances up to 3000 meters and jam signals up to 2000 meters. The device offers selectable signal detection and interference modes, enabling flexible actions such as forced return, landing, hovering, and video disruption.
Powered by a large-capacity rechargeable battery, the Anti-Drone Gun operates continuously for over 60 minutes. It boasts an exceptionally low false alarm rate, even in complex electromagnetic environments, outperforming other devices that rely on spectrum comparison. Portable and highly maneuverable, it can be easily deployed in various terrains for rapid and flexible protection. With one-touch automatic search, intelligent detection, and buzzer alerts for suspicious signals, the device ensures timely response and rapid signal capture. Designed for strong adaptability, it operates effectively in foggy and light rain conditions, providing reliable performance across different environments.
Model | DZ08-Pro | |
Device Weight | Approx. 8.3KG | |
Device Dimensions (including battery) | Length 850mm * Width 200mm * Height 130mm | |
Antenna Type | Directional | |
Antenna Gain | 9dB | |
Antenna Angle | 60 degrees | |

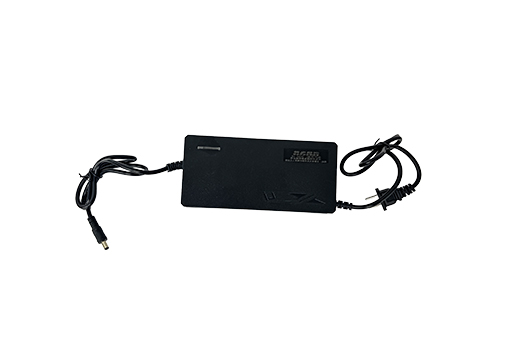

Power Supply | 24v9.6Ah | |
Operating Time | ≤60 minutes | |
Operating Temperature | -20℃~+55℃ | |
Relative Humidity | 80%RH | |

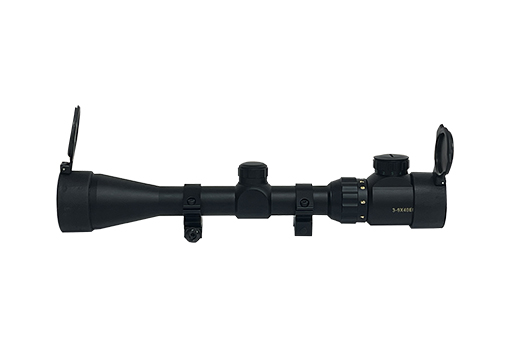

Expansion Function | Equipped with standard rail, can install scope, night vision device, law enforcement recorder, etc. | |
Jamming Distance | Open area ≥2000 meters (depending on model/environment) | |
Channel Frequencies And Powers | ||
Jamming Frequency/Power | Jamming Frequency | Channel Power |
5.8GHz | 20W~30W | |
800MHz/900MHz/2.4GHz | 30W | |
1.2GHz/1.5GHz | 10W | |
Detection Technical Parameters | ||
Operating Frequency | 2.4GHz, 5.8GHz | |
Direction Finding Method | Directional | |
Detection Types | Quadcopters from brands like DJI, DIY fixed-wing drones, racing drones | |
Detection Distance | Open area ≥3000 meters (depending on model/environment) | |
Alarm Delay | <6 seconds (0~3km) |
