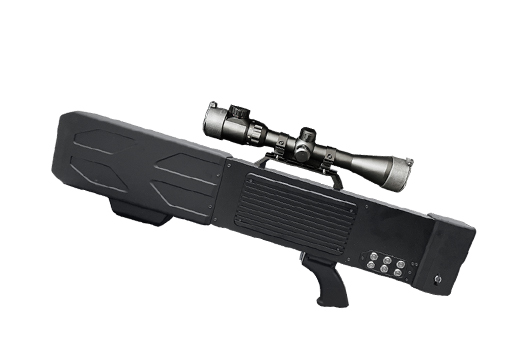

DZ06-Pro

• 6-Channel Anti-Drone Jammer Gun
• High-power interference signals suppress drone control signals, with a jamming distance of up to 2000 meters.
• High-gain directional antennas, with single-channel transmission power up to 40 watts, focus energy for precise targeting.
• High-capacity battery, providing continuous operation for over 55 minutes, with optional backups available for extended use.
• Portable design, ensuring high mobility and flexibility, adaptable to any terrain for drone intrusion prevention.
• The DZ06-Pro covers over 93% of mainstream drone models, effectively interfering with most commonly used signal frequencies.
• Rapid signal capture, with strong adaptability to environmental conditions such as fog or light rain.
• Customizable frequency bands to meet specific international requirements.

DZ06-Pro Six-Channel Anti-Drone Gun: Precision UAV Control and Interference Solution

The DZ06-Pro Six-Channel Anti-Drone Gun is designed for the precise and effective control of UAVs and flying models in flight. By emitting high-power suppression signals, the device interferes with the UAV's data link and positioning system, cutting off communication and navigation signals between the UAV and its remote controller. This forces the drone to hover, land, or return automatically.

Convenient for rapid deployment and operable by a single user, the DZ06-Pro is equipped with a large-capacity battery, allowing for over 60 minutes of continuous use, with a jamming range of up to 2000 meters, depending on environmental factors. The high-gain directional antenna focuses the energy with a single-channel transmission power of up to 40 watts, providing accurate targeting of UAVs and UAV monitoring.

The DZ06-Pro can effectively control over 93% of low-altitude multi-rotor UAVs on the market, ensuring signal jamming and disabling image and video transmission. Its portable, maneuverable design allows for flexible deployment in various terrains and reliable operation in adverse weather conditions such as fog and light rain, making it an ideal solution for comprehensive drone intrusion prevention.

odel DZ06-Pro
Device Weight Approx. 4KG (including battery)
Device Dimensions (including battery) Length 850mm * Width 200mm * Height 130mm

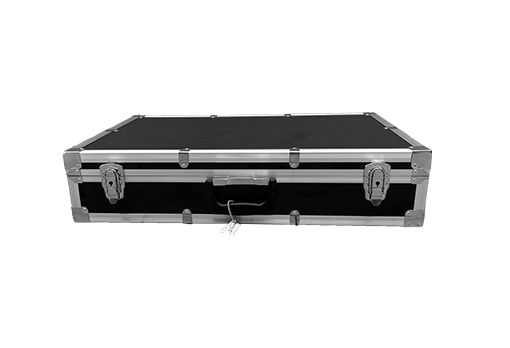

Aviation Case Weight (including device) Approx. 8.3KG
Antenna Type Directional
Antenna Gain 9dB
Antenna Angle 60 degrees
Power Supply 24v9.6Ah
Operating Time ≤50 minutes
Operating Temperature -20℃~+55℃
Relative Humidity 80%RH

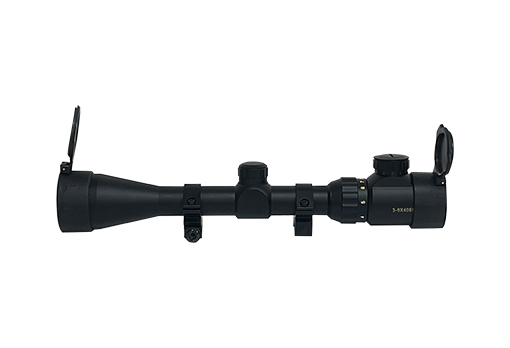

Expansion Function Equipped with standard rail, can install scope, night vision device, law enforcement recorder, etc.
Jamming Distance Open area ≥2000 meters (depending on model/environment)
Channel Frequencies And Powers
Jamming Frequency/Power Jamming Frequency Channel Power
5.8GHz 20W~30W
800MHz/900MHz/2.4GHz 30W
1.2GHz/1.5GHz 10W

Documents

  • SZMID - DZ06-Pro Six-channel Drone Strike Gun
