DZ05-Pro
• 4-Channel Drone jamming Gun
• The device emits high-power interference signals of the same frequency, with a jamming distance of up to 1600 meters.
• Focusing energy for more precise targeting.
•Can operate continuously for over 60 minutes .
• Features a portable design with high mobility, unrestricted by any terrain environment, and can be flexibly deployed in all areas that require drone intrusion prevention.
• It can interfere with most commonly used drone signal frequencies.
• It quickly captures drone signals, drone detection and can operate normally in foggy or light rain conditions, demonstrating strong environmental adaptability.

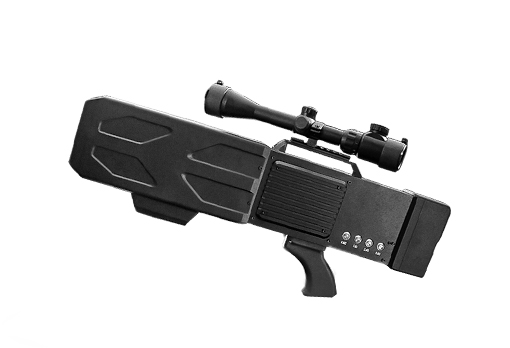

DZ05-Pro Four-Channel Drone Jamming Gun: Advanced Non-Destructive UAV Suppression
The DZ05-Pro Four-Channel Drone Jamming Gun effectively neutralizes UAVs without causing physical damage. It emits suppression control signals that interfere with the drone's data link and positioning systems, blocking communication between the UAV and its remote control or navigation signals. This forces the drone to hover, land, or return automatically. By deploying high-power jamming signals across 900MHz, 1.5G, 2.4G, and 5.8G frequency bands, as well as 1.5G (GPS/GLONASS/satellite navigation), the DZ05-Pro disrupts the UAV's flight control, GPS、GNSS system, and data transmission, cutting off communication with the operator and ensuring a safe, controlled landing or return.
The device features a high-gain directional antenna, providing concentrated energy for precise targeting with an interference range of up to 1600 meters. Powered by a large-capacity battery, it delivers over 60 minutes of continuous operation, with additional battery options available based on operational needs. Portable and highly maneuverable, the DZ05-Pro can be deployed in any terrain, offering flexible protection against drone intrusions. It interferes with more than 90% of commonly used drone signal frequencies, quickly capturing drone signals and maintaining reliable performance in foggy or light rain conditions, ensuring strong environmental adaptability.
| Model | DZ05-Pro | |
| Device Weight | Approx. 4KG (including battery) | |
| Device Dimensions (excluding scope) | Length 620mm * Width 160mm * Height 60mm | |

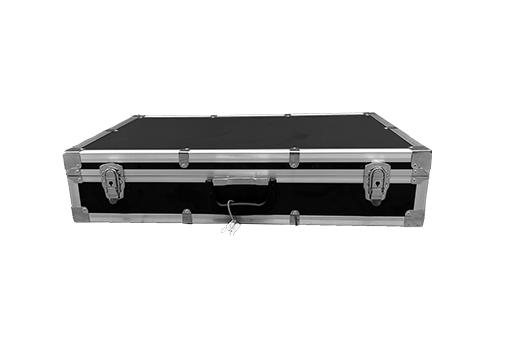

| Aviation Case Dimensions | Length 660mm * Width 400mm * Height 125mm | |
| Aviation Case Weight (including device) | Approx. 8.5KG | |
| Antenna Type | Directional | |
| Antenna Gain | 9dB | |
| Antenna Angle | 30 degrees | |
| Power Supply | 24v5Ah | |
| Operating Time | 60 minutes | |
| Operating Temperature | -20℃～+55℃ | |
| Relative Humidity | 80%RH | |
| Expansion Function | Equipped with standard rail, can install scope, night vision device, law enforcement recorder, etc. | |
| Jamming Distance | Open area ≥1500 meters (depending on model/environment) | |
| Channel Frequencies And Powers | ||
| Jamming Frequency/Power | Jamming Frequency | Channel Power |
| 5.8GHz | 20W | |
| 900MHz/2.4GHz | 30W | |
| 1.5GHz | 10W | |
