BQX-TS06
• Handheld Thermal Imaging Viewer
• HD Probe Sensor: Equipped with a high-definition probe sensor that delivers clear, smooth images for precise inspections.
• Photo and Video Capabilities: Supports capturing images, recording videos, reviewing playback, and adjusting brightness and clarity, along with system settings for multifunctional use.
• Energy-Efficient LED Lighting: Utilizes high-brightness LED light sources with low power consumption, long lifespan, and enhanced image stability, all within a compact and lightweight design.
• 360º Flexible Observation: Features a controllable lens with mechanical joystick control, allowing 360-degree rotation for comprehensive, blind-spot-free observation.
• 5-Inch HD Display: Comes with a 5-inch HD LCD display, offering a 1280*720P resolution, high brightness, and multiple digital zoom options for detailed visual output.
• Lightweight and Portable: Designed for portability and ease of use, adaptable for multi-environment, multi-layer, and multi-angle inspections, making it ideal for various inspection tasks.

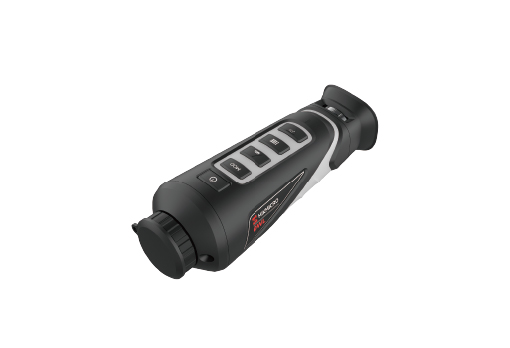

SZMID - BQX-TS06 Handheld Thermal Imaging Viewer: Advanced Thermal Detection with Wi-Fi and Hotspot Tracking
The SZMID BQX-TS06 Handheld Thermal Imaging Viewer is an advanced thermal imaging solution that integrates essential observation functions, non-authorized target hotspot tracking, and Wi-Fi connectivity, making it a versatile tool for security and detection tasks. Utilizing state-of-the-art passive infrared thermal imaging technology, the device delivers high-quality image information even in low-visibility conditions or complete darkness. This handheld device is ideal for identifying and tracking various locators, bugs, and hidden camera equipment, and can be used in conjunction with other detection tools, such as non-linear junction detectors or signal detectors, for comprehensive security inspections.
Equipped with a highly sensitive infrared detector and a resolution of 640 × 512, the BQX-TS06 ensures sharp and detailed thermal imagery. The 3D noise reduction and image detail enhancement features provide further clarity and contrast, making it easy to detect even the smallest temperature variations. Its 35 mm lens, combined with a 0.39-inch OLED display (1024 × 768 resolution), offers a crystal-clear viewing experience.
Powering the BQX-TS06 is a long-lasting 18650 lithium battery, capable of delivering over six hours of continuous operation, with support for external charging through its TYPE-C interface. Additional features include hotspot tracking and Wi-Fi hotspot support, allowing for easy data sharing and connectivity in the field. The built-in high-speed storage (up to 16 GB EMMC v5.1) enables seamless recording of videos and photos, while digital zoom and laser indication further enhance inspection capabilities. The device also supports mode switching for different operational requirements, offering flexibility in various inspection environments.
With its powerful combination of cutting-edge thermal imaging technology, portability, and versatile functionality, the BQX-TS06 is the perfect choice for professionals needing accurate and reliable thermal detection in a wide range of scenarios.
Product Model | BQX-TS06 |
Sensor Type | Uncooled VOx Detector |
Maximum Image Size | 640 × 512 |
Pixel Size | 17 μm |
Response Band | 8~14 μm |
NETD (Noise Equivalent Temperature Difference) | <35 mk (@25 °C, F#=1.0) |
MRTD (Minimum Resolvable Temperature Difference) | 500 mk |
Reference Object Size | Human: 1.8 × 0.5 m |
Thermal Imaging Lens Focal Length | 35 mm |
Detection Distance (Human) | 1235 m |
Field of View | 17.7°× 14.2° |
Maximum Aperture Value | F1.0 |
Frame Rate | 50 fps |
Scene Modes | Identification mode, Jungle mode |
Magnification | 1.4~11.2 |
Brightness Adjustment | 1~5 levels adjustable |
Display Resolution | 1024 × 768 |
Display | OLED |
Image Modes | Black hot, White hot, Red hot, Fusion mode |
Digital Zoom | 1X, 2X, 4X, 8X |
Contrast Adjustment | 1~5 levels adjustable |
WiFi | Supported |
Snapshot | Supported |
Video Recording | Supported |
Hotspot Tracking | Supported |
Laser Pointer | Supported |
Crosshair | Supported |
Ranging | Supported |
Storage | Supported, built-in EMMC v5.1 high-speed interface (up to 16 GB) |
Battery Life | Over 6 hours of continuous operation |
Operating Temperature | -30 to 55 ℃ |
