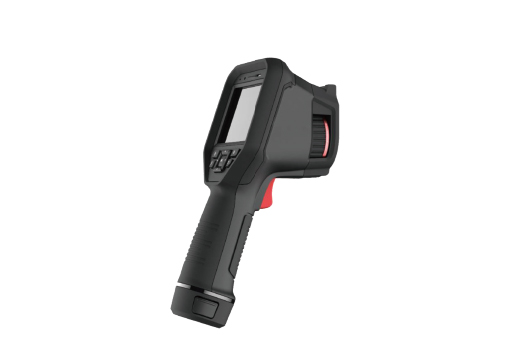

BQX-TP23
• Handheld Thermal Imager
• Real-Time Temperature Monitoring: Capable of providing real-time temperature readings for accurate scene analysis.
• Thermal and Visible Light Fusion: Supports the display of both thermal imaging and visible light images, enhancing inspection precision.
• Image and Video Storage: Allows storage of captured images and recorded videos directly on an SD card for easy access and review.
• Multiple Color Modes: Offers a selection of false color modes, along with an alarm function to trigger alerts based on the chosen mode.
• Wi-Fi and Hotspot Connectivity: Supports both Wi-Fi and Wi-Fi hotspot connections, enabling seamless data transfer and remote operation.
• Bluetooth Audio Support: Equipped with Bluetooth functionality to receive voice through a connected Bluetooth headset, facilitating hands-free communication during use.
SZMID - BQX-TP23 Handheld Thermal Imager: Advanced Dual-Light Temperature Measurement Technology
The SZMID BQX-TP23 Handheld Thermal Imager is a cutting-edge tool designed for precise temperature measurement and scene monitoring, integrating both thermal imaging and visible light technology. Equipped with a high-sensitivity infrared detector and a high-resolution visible light camera, this thermal imager allows users to detect subtle temperature changes and accurately assess target temperatures. The fusion of thermal and visible images, along with advanced image processing techniques like picture-in-picture overlay, enhances the clarity of visual details, making it easier to identify and interpret scenes. Designed for ergonomic handheld use, the BQX-TP23 supports seamless integration with other detection equipment such as signal detectors and bug locators, further expanding its functionality in security and inspection operations. It allows real-time temperature monitoring and features dual-light fusion for more detailed analysis. Users can capture both video and still images, which can be stored on an SD card for later review. The device offers a range of advanced features, including multiple false color modes with customizable alarms, ensuring quick alerts based on the selected mode. Wi-Fi and Wi-Fi hotspot connectivity provide easy access for remote operations, while Bluetooth support enables users to receive voice communication through a headset. The 9.7mm thermal imaging lens, with a minimum focusing distance of 0.2 meters, ensures sharp close-up inspections. The 3.5-inch touchscreen is designed for outdoor use, providing clear visuals even in bright sunlight. The thermal imager also supports advanced temperature measurement functions such as maximum, minimum, and center point positioning, as well as point, line, and frame temperature measurement. With a temperature range of -20°C to 150°C or 100°C to 550°C, and a measurement accuracy of ±2°C or ±2% of the reading, the BQX-TP23 ensures precise and reliable performance in diverse environments. Additional features like 3D noise reduction, digital zoom, and customizable contrast further enhance its utility, making it a versatile tool for professionals requiring accurate thermal imaging.
Product Model | BQX-TP23 |
Sensor Type | Uncooled Detector |
Response Band | 8~14 μm |
NETD (Noise Equivalent Temperature Difference) | <50 mk (@25 °C, F#=1.0) |
Maximum Image Size | Thermal: 384 × 288, Visible: 3264 × 2448 |
Thermal Imaging Lens Focal Length | 9.7 mm |
Field of View | 37.5° × 28.5° |
Digital Zoom | 1×, 2×, 4×, 8× |
Frame Rate | 25 Hz |
F-Number | F1.0 |
Temperature Measurement Range | -20 °C to 550 °C |
Accuracy | ±2 °C or ±2%, whichever is greater |
Image Resolution | Photos: 1600 × 1200, Video: 1600 × 1200 |
Display | 3.5'' LCD capacitive touchscreen, 640 × 480 |
Image Modes | Supports 7 pseudo-color modes including rainbow and iron red |
Display Modes | Visible light, thermal imaging, dual-light fusion, picture-in-picture |
Laser Pointer | Supported |
Photography | Thermal, visible light, dual-light fusion, picture-in-picture |
Video Recording | Thermal, visible light, dual-light fusion, picture-in-picture |
Illumination | Supported |
Text Annotation | Supported |
Voice Annotation | Supported (60 seconds) |
Interface Language | Chinese |
WiFi | Supported |
Storage | 64 GB |
Hardware Interface | TYPE-C |
Battery Type | Lithium-ion battery |
Battery Operation Time | 4 hours, field replaceable, rechargeable |
Operating Temperature and Humidity | -10 °C to 50 °C, ≤95% |
Protection Level | IP54 |
Drop Resistance | 2 meters |
Weight | 660 g |
Dimensions | 244 mm × 100 mm × 104 mm |
Accessories | Battery, user manual, charging dock, charger, USB cable, high-strength impact-resistant portable case |
