BQX-RC20
• Wall Line Detector
• Accurate Detection of Hidden Devices: Capable of locating hidden metal objects, wiring, and illegal surveillance devices such as eavesdroppers and pinhole cameras within walls, ceilings, and floors.
• Laser Distance Measurement: Equipped with laser technology for measuring room dimensions, including length, area, and volume, with support for addition/subtraction and Pythagorean measurements.
• Maximum Detection Depth: Detects ferrous metals up to 100mm, non-ferrous metals like copper up to 80mm, copper wires (≥4mm²) up to 40mm, and wooden studs up to 38mm.
• Versatile Detection Modes: Detects various materials including rebar, copper pipes, electrical cables, and wooden studs hidden behind drywall, ceilings, and floors.
• 1.8-Inch Color Display: Features a bright LED display with low power consumption and extended lifespan, ensuring clear and readable results.
• Multiple Measurement Modes: Supports single, continuous, and area measurements, along with single and double Pythagorean measurement options for enhanced versatility.

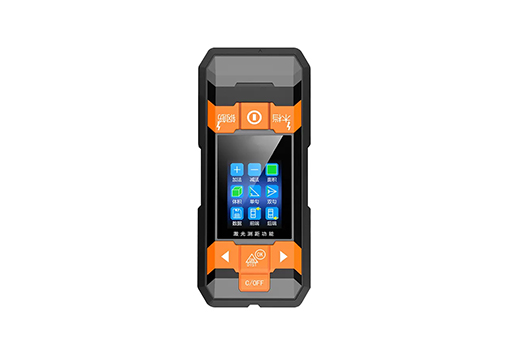

SZMID - BQX-RC20 Wall Line Detector: Advanced Detection and Measurement for Hidden Devices
The SZMID BQX-RC20 Wall Line Detector is an essential tool designed to detect hidden devices such as metal objects, wiring, and illegal surveillance equipment (e.g., bugs, pinhole cameras) concealed within drywall, walls, ceilings, and floors. With its precise detection capabilities, the BQX-RC20 ensures real-time results, which are clearly displayed on its 1.8-inch color screen for easy visibility. The device is built with 1-meter drop protection, enhancing its durability for rugged inspection tasks. The BQX-RC20 combines multiple functions into one compact device, including metal and wiring detection, laser distance measurement, and wood moisture detection. The laser ranging feature allows users to measure the length, area, and volume of rooms with ease, offering advanced functionality such as addition and subtraction measurements, and even single and double Pythagorean measurements. The tool is versatile enough to switch between metric and imperial units (m/ft+in) based on user preference. One of its key advantages is the ability to store up to 30 sets of historical measurement data, enabling users to compare results after each inspection. The device supports single, continuous, and area measurements for a wide range of applications. Additionally, live voice broadcast functionality provides real-time feedback, while the built-in fluff pad ensures added convenience and user comfort. The SZMID BQX-RC20 Wall Line Detector is a comprehensive solution for accurate detection and measurement in various environments, enhancing security and inspection efficiency.
| Product Model | BQX-RC20 |
| Dimensions | 312 x 60 x 60 mm |
| Detection Function Parameters | |
| Maximum Detection Depth | Iron Metal 100 mm |
| Non-Iron Metal (Copper) 80 mm | |
| Copper Wire (≥4 sq mm) 40 mm | |
| Foreign Objects (Typically Wood) 20mm/38mm | |
| Working Humidity Range | Metal Mode 0-85%RH |
| Foreign Object Mode 0-60% RH | |
| Laser Ranging Parameters | |
| Measurement Accuracy | ±5mm |
| Units | Meters/Inches/Feet |
| Measurement Range (No Reflector) | 0.05-40m |
| Measurement Time | 0.3-4 seconds |
| Laser Type | 620~670nm, <1mW |
| Auto-Off Laser | 20 seconds |
| Data Storage | 30 groups |
| General Parameters | |
| Auto Shutdown | Approximately 5 minutes |
| Screen | 1.8 inch color display |
| Battery Type and Life | 300mAh built-in lithium, approx. 5000 measurements |
| Product Dimensions | 135 x 60 x 25 mm |
| Operating Temperature Range | 0°C to 40°C |
| Storage Temperature Range | -20°C to 60°C |
