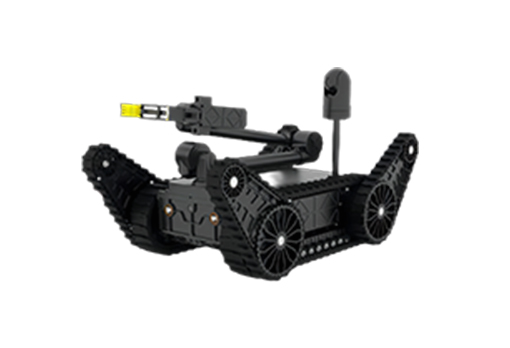

BQX-PB08C
• Eod Bomb Disposal Robot
• 6-DOF Explosive Ordnance Arm: Features a versatile arm capable of grabbing objects from any direction, ensuring maximum maneuverability in hazardous situations.
• 360° Surveillance Capability: Equipped with four imaging sources, including front view, gimbal, and upper/lower mechanical claws, providing complete situational awareness.
• Heavy Lifting Capacity: The mechanical arm can handle objects weighing up to 50kg, making it suitable for disarming large threats.
• Dual Swing Arm and Track System: Designed for smooth navigation over rugged and uneven terrains, enabling access to difficult-to-reach locations.
• Multiple Control Modes: Operates with both wireless and wired controls, offering reliability even in environments with significant interference.
• Portable and Rapid Deployment: Compact and mobile design allows for quick deployment in urgent combat or operational tasks.
• Interchangeable Mechanical Hand Tools: Comes with easily swappable attachments like claws, knives, scissors, hooks, and drill bits, ensuring the robot can handle a wide range of explosive ordnance disposal tasks.
SZMID BQX-PB08C EOD Bomb Disposal Robot for Explosive Threats and Challenging Terrains
The SZMID BQX-PB08C EOD Bomb Disposal Robot is a cutting-edge solution designed to handle high-risk explosive-related tasks and navigate difficult terrains. This highly adaptable robot is equipped with a 6-degree-of-freedom robotic arm, allowing it to grab objects from any direction, ensuring versatility in dangerous environments. Its ability to integrate a variety of accessories, such as bomb disposal ropes, explosive destroyers, and remote detonation systems, makes it suitable for multiple operational scenarios.
The robot’s 360° surveillance system, which includes imaging sources from the front view, pan/tilt cameras, and mechanical claws, provides a comprehensive view of the surroundings, enabling operators to make informed decisions in real-time. Its powerful robotic arm is capable of lifting objects weighing up to 50kg, making it an ideal choice for disarming large explosive devices.
Designed for rugged environments, the BQX-PB08C features a dual swing arm and track system that allows it to traverse complex terrains with ease, such as rubble, sand, or steep inclines. The system also operates with both wireless and wired control modes, ensuring reliable performance even in areas prone to communication interference.
In addition to its mobility, the robot is lightweight and portable, enabling quick deployment for urgent combat or rescue missions. Its rapid movement capabilities make it an ideal tool for time-sensitive operations where every second counts.
The BQX-PB08C also features a quick-change capability in its mechanical hand. The robot can be easily equipped with standard accessories like mechanical claws, knives, scissors, rakes, hooks, and drills, offering multifunctionality for various explosive ordnance disposal tasks. Whether used for bomb disposal or difficult terrain exploration, the SZMID BQX-PB08C offers reliability, flexibility, and superior performance across a wide range of scenarios.
| Product Model | BQX-PB08C EOD Robots |
| Dimensions (Fully Retracted) | 1000mm (L) × 745mm (W) × 750mm (H) |
| Dimensions (Arm Up) | 1000mm (L) × 745mm (W) × 2300mm (H) |
| Dimensions (Arm Forward) | 2550mm (L) × 745mm (W) × 750mm (H) |
| Weight | ≤160 kg (including battery) |
| Load Capacity | ≥200 kg |
| Max Speed | ≥2 m/s (stepless speed adjustment) |
| Climbing Ability | ≥45° incline |
| Stair-Climbing Ability | ≥45° incline |
| Ground Clearance Height | 420 mm |
| Trench Crossing Width | 600 mm |
| Chassis Material | Aviation-grade aluminum alloy, precision machined |
| Chassis Structure | Tracked with front and rear double swing arms |
| Ground Clearance | ≥85 mm |
| Protection Level | IP65, all-weather |
| Battery | 48V lithium battery, 21AH (two units), removable |
| Operational Time | 8 hours |
| Charging Voltage | AC 220V |
| Charging Time | 8 hours |
| Safety | Capable of carrying explosive ordnance disposal tools |
| Mechanical Arm | |
| Arm Length (Fully Extended) | ≥1700 mm |
| Degrees of Freedom | ≥6 |
| Max Reach Height | ≥2300 mm |
| Max Reach Depth | ≥900 mm |
| Gripping Force | ≥50 kg |
| Claw Size (Max Open) | ≥300 mm |
| Claw Camera | HD color camera with infrared night vision, 1080P, ≥30m night vision |
| Modular Design | Quick replacement of arm and turret camera components |
| Protection Level | IP66 |
| Night Vision Distance | 100-150m |
| Degrees of Freedom | 2 independent degrees: Pitch -15° to 90°, Continuous horizontal 0-360° |
| Monitoring Camera | 30x optical zoom, minimum illumination: 0.1 Lux |
| Control Box | Pelican protective case |
| Control Method | Button and joystick operation |
| Display Specifications | 14-inch, 8 display modes, real-time battery display |
| Remote Control Distance | Wireless 500m (visual), Wired 100m (standard) |
| Operational Voltage | 12V |
| Battery Type | 12V lithium battery (built-in) |
| Battery Capacity | 18AH |
| Charging Time | 4 hours |
| Tools Provided | 6 types: standard mechanical claw (balance type), knife, scissors, rake, hook, drilling tool |
