BQX-GPS110
• Non-Linear Junction Detectors
• Advanced 2400MHz RF Detection: Equipped with cutting-edge 2400MHz radio frequency technology, offering precise detection and location of non-linear junctions.
• Enhanced Semiconductor Identification: Captures second and third harmonic signals from non-linear elements in target devices, ensuring accurate detection of hidden electronic components.
• OLED Graphical Interface: Features a real-time OLED display with easy-to-read graphical representations of emission power and harmonic responses.
• Safe Low Radiation Levels: Designed to meet safety standards with minimal electromagnetic radiation, ensuring no adverse effects on human health.
• High Sensitivity Antenna: Built-in high-gain antenna allows for the detection of concealed devices, including SIM card-based communication and recording systems.

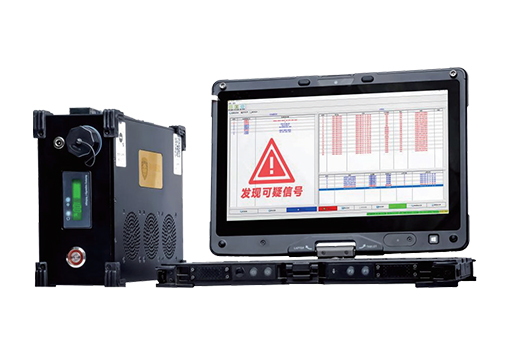

SZMID - BQX-GPS110: Advanced GPS Locator and Wireless Signal Detection System
The SZMID BQX-GPS110 is a cutting-edge GPS locator detection system developed by Shenzhou Mingda, designed to address the growing need for high-performance tools in signal detection and anti-surveillance. This ultra-compact, multifunctional device operates as a high-performance LTE base station, leveraging advanced LTE TDD/FDD technology to detect and neutralize unauthorized GPS locators, bugs, hidden cameras, and other surveillance devices. By integrating unauthorized devices into its network and utilizing platform software for IMSI and IMEI analysis, it serves as an essential tool for engineers and anti-surveillance professionals alike.
One of the system's standout features is its intelligent early warning capabilities, which monitor 2G, 3G, and 4G signals and compare them against a whitelist of authorized devices. This ensures that any unapproved or suspicious devices, such as GPS trackers or voice bugs, trigger alarms, providing timely alerts to potential threats. The whitelist function allows safe communication for approved devices, while all other unauthorized devices are flagged for further investigation.
The BQX-GPS110 also supports frequency scanning, enabling it to analyze and display vital information from live network frequency points, such as PCI, TAC, RSRP, and bandwidth, for efficient frequency management. Its portable design, combined with low power consumption, ensures ease of use in a variety of settings. The device supports numerous frequency bands, including B38, B39, B40, B41, and several more, with the option to customize frequencies based on specific requirements.
Other key features include support for customizable uplink/downlink time slot ratios and multiple operating bandwidths, ranging from 5MHz to 20MHz. It also offers redirection to 2G, 3G, and 4G networks, with the ability to capture key device identifiers such as IMSI, S-TMSI, and IMEI. Additionally, the system provides base station and user power control, ensuring optimal signal detection and minimal interference. With support for periodic information capture, blacklists, and whitelists, the BQX-GPS110 delivers a comprehensive solution for real-time signal monitoring and device detection, making it an invaluable asset in maintaining privacy and security.
| Product Model | BQX-GPS110 |
| Frequency Range | 325 MHz ~ 3.8 GHz (customizable) |
| Clock Accuracy | 50 ppb |
| Operating Bandwidth | 5 MHz / 10 MHz / 15 MHz / 20 MHz |
| Synchronization Method | Supports GPS, over-the-air synchronization, 1588V2 |
| Power Consumption | <9 W |
| Power Supply Voltage | 5.5V ~ 14V/DC |
| Dimensions | 250 x 190 x 95 mm |
| RF Output Power | <3 dBm (adjustable downwards, step size 0.25 dB) |
| Receiver Sensitivity | -98 dBm ~ -100 dBm (adjustable gain, step size 1 dB, range 0~76 dB) |
| EVM | <2% @ 64QAM |
| CPU | 2 ARM cores, 2 DSP cores |
| Main Frequency | 1 GHz |
| Memory | DDR3 2 GB, 1600 MHz |
| FLASH | 256 MB |
