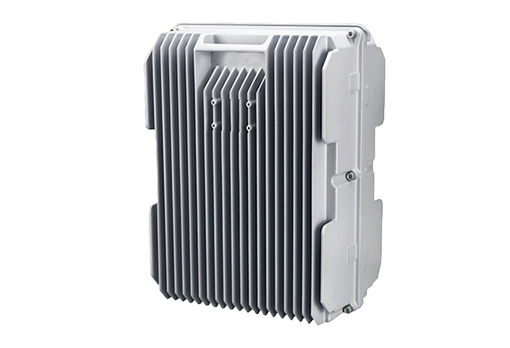

BQX-GKS02
• Electronic Fence Control System
• High Integration: A single device efficiently collects mobile user IMSI and IMEI information at medium and high speeds, ensuring high collection accuracy.
• Special Communication Protocols for Covert Collection: Information is collected quickly and discreetly, with minimal perceptibility by the subjects, making it highly effective and difficult to detect.
• Local Wireless Monitoring and User-Friendly Interface: Provides easy operation with robust data analysis capabilities and a highly interactive user interface.
• Optimized RF Devices and Software: Effectively controls interference and reduces radiation while maintaining an extensive collection range, ensuring fast and secure information gathering.
• Modular Design for Stability: The modular structure offers high reliability, easy maintenance, and natural cooling with no noise interference.
• IP65 Protection Rating: Industrial-grade design resistant to rain and lightning, providing durability in harsh environments.
• Advanced Data Storage and Analysis: Supports massive data storage, query, and analysis using commercial databases such as MySQL, Oracle, and SQL Server, offering speed, reliability, and security.
SZMID - BQX-GKS02: Advanced Electronic Fence Control System for Real-Time Mobile Data Collection and Analysis
The SZMID BQX-GKS02 is a highly advanced electronic fence control system designed to support the collection of IMSI information from user terminals operating on 4G and 5G networks, including those from China Mobile, China Unicom, China Telecom, and China Broadcasting. The system offers discreet installation with a built-in antenna, allowing for covert operation while continuously gathering mobile user data. The collected information is uploaded in real-time to the central system, enriching existing datasets and providing valuable insights for various applications, such as trajectory analysis, public security management, key user protection, illegal user tracking, and business decision-making.
The BQX-GKS02 fully covers 4G and 5G networks across major telecom providers and ensures fast data capture. Mobile terminals are detected within 1 second upon entering the coverage area, with a release period of just 0.1 seconds. This high-speed performance ensures rapid data collection without affecting the user experience.
Additionally, the device allows real-time modification of power and frequency settings without needing to restart, enhancing operational efficiency. The system is equipped with automatic alarms that are reported directly to the central system, enabling remote maintenance, version upgrades, and alarm handling. The BQX-GKS02 also supports a power failure alarm function, ensuring continuous monitoring and operation even in challenging environments.
With its robust data collection and remote management capabilities, the SZMID BQX-GKS02 is an essential tool for comprehensive mobile data analysis, offering unmatched support for security operations, illegal activity tracking, and advanced decision-making processes.
| Product Model | BQX-GKS02 |
| Collection Objects | 2G-3G GSM: B8, CDMA: B5, DCS: B3, B1, B2, B5 |
| 4G-5G TD-LTE: B34, B38, B39, B40, B41, N38, N41, N77, N78, FDD-LTE: B3, B1, B5, B8, N1, N3, N5, N7 | |
| Supported Bandwidth | 2G GSM, DC, S: 0.2M, CDMA: 1.23M |
| 4G-5G 5M/10M/15M/20M | |
| Downlink Rated Power (Total Power) | 10W per standard |
| Adjustable Power Range | 500mW~10W |
| Information Collection Rate | 2G~3G: 600 users/minute/carrier, 4G~5G: 500 users/minute/carrier |
| Effective Collection Rate | 99% (target speed <80KM/H), 96% (target speed 80-110KM/H) |
| Object Collection Processing Time | 1~2 seconds |
| Collection Operating Mode | Direct collection (deny return to public network after collection) |
| Collection Range | Directional: ≥400 meters (depending on local public network environment, medium or lower signal strength) |
| Local Communication Method | Ethernet wired connection or WIFI |
| Power Consumption | GSM <100W, CDMA <85W, TD-LTE <88W per carrier, FDD-LTE <100W |
| Cooling Method | Air cooling |
| Local Data Transmission Method | UDP, TCP/IP |
| Backend Data Transmission Format | FTP |
| Backend Data Transmission Method | Wired (Ethernet)/(Fiber), Wireless (wireless data network) |
| Power Supply Range | AC 220VAC (220±60VAC/50±5Hz) |
| Operating Temperature | -25℃ ~ 55℃ (ambient temperature) |
| Dimensions | 380mm285mm250mm (GSM+4*LTE) |
| Weight | <32kg (GSM+4*LTE) |
| Protection Level | IP65 |
| RF Interface Type/Impedance | N-Female, SMA-Female 50ohm |
| Reliability and Availability | MTBF (Mean Time Between Failures): ≥30000 hours |
