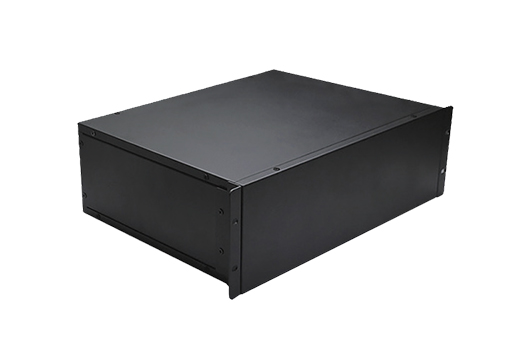

BQX-GKS01

• Base Station Public Network Signal Control System
• Low Radiation, Distributed Architecture: Utilizes a base station redirection parsing technology with distributed multi-point transmission. Transmission power is less than 1/300 of traditional blockers, with electromagnetic radiation lower than that of mobile phones.
• Comprehensive Signal Control: Effectively controls 2G, 3G, 4G, and 5G networks, even in environments with operator network signal strengths exceeding -50dBm, ensuring full standard coverage.
• High-Precision Positioning: Provides precise control with a positioning accuracy of less than 0.2 meters, allowing for accurate signal management.
• Adaptive Network Adjustment: Automatically detects changes in external network environments and adjusts parameters in real time to ensure reliable and continuous operation.
• Upgradeable System: Supports current 2G, 3G, 4G, and 5G standards, with an expansion interface for future upgrades and compatibility with evolving communication technologies.
• Reliable and Stable Operation: Equipped with a robust network management and device monitoring platform (OMC) for real-time monitoring of the system’s operational status and configuration, ensuring consistent and secure communication control.

SZMID - BQX-GKS01: Advanced Base Station Public Network Signal Control System for Secure and Precise Communication Management

The SZMID - BQX-GKS01 Base Station Public Network Signal Control System offers an advanced solution for controlling and securing public network signals within a defined area. The system consists of a signal control platform, base stations, collectors, and distributed signal-level antenna equipment. Using optical fiber and feeder transmission media for RF transmission, along with TCP/IP protocol and Category 5 cable for the control platform, this system ensures high precision and secure management of communication signals.

This low-radiation distributed architecture relies on base station-type directional analysis technology, with transmission power that is 1/300 of traditional shielding devices. Its electromagnetic radiation levels are lower than those of a mobile phone, ensuring safety. The system achieves full-area, full-standard signal control, even in scenarios where network signal strengths exceed -50dBm, providing reliable control over 2G, 3G, 4G, and 5G signals. It redirects 2G, 3G, and 5G signals to 4G for control, while capturing terminal ISMI codes to enable blacklist/whitelist management and precise positioning with an accuracy of less than 0.2 meters.

One of the system’s key strengths is its adaptive capability. It automatically detects changes in external network conditions and adjusts parameters to ensure smooth and reliable operation. Additionally, it is designed to be future-proof, supporting the current 2G, 3G, 4G, and 5G standards, with expansion interfaces for future upgrades.

The BQX-GKS01 is highly reliable, featuring a mature network management and monitoring platform (OMC) that tracks the operating status and configuration of network elements in real-time. This prevents tampering and ensures uninterrupted communication control. The system is designed for complex environments, integrating multiple subsystems to create an economically efficient, resource-optimized solution.

Security is a top priority, with strict access controls and robust confidentiality measures integrated into the design. The system uses mature, advanced technology to ensure stability, scalability, and adherence to international standards. It guarantees reliable, long-term operation with the ability to scale as needed for future developments.

The system provides comprehensive coverage across all mobile operators (2G/3G/4G/5G) and frequency bands, ensuring no gaps in signal control. With ultra-multi-carrier capacity, it can handle up to 24 concurrent carriers, ensuring thorough management of all connected devices and minimizing the risk of undetected rogue devices.

This complete solution offers convenient deployment, simple construction, and easy maintenance, making it an ideal choice for organizations requiring reliable, high-performance communication control.

Product ModelBQX-GKS01
Physical CharacteristicsDimensions (mm)513mm x 409mm x 333mm
Weight (Kg)<25Kg
Performance SpecificationsModesLTE TDD, LTE FDD, GSM, CDMA, WCDMA, CDMA2000
Simultaneous Operating Bands4G: Band 1, Band 3, Band 5, Band 8, Band 34, Band 39, Band 40, Band 38/41, GSM: 900M or 1.8G, CDMA: 800M, WCDMA: 2.1G, 5G: B1, B5, N78/B42, B41/7, B28
Number of Simultaneous Carriers24 carriers
Operating Mode4G: Selective calling, inside account mobile release, outside account mobile adsorption blocking, GSM: Redirection, CDMA/WCDMA: Redirection, 5G: Redirection
Carrier SupportSimultaneous support for mobile, telecom, Unicom, and broadcasting carrier mobile control
List Capacity> 100,000
Output Power20W per band, support for 1dB step adjustment
Control AreaAbout 3000 square meters (related to building structure and carrier base station signal)
Receiver Sensitivity-104dbm
Network ConnectionWired Ethernet
Synchronization MethodGPS
Power Consumption SpecificationsPower Supply220V AC
Power Consumption<600W (when fully powered)
Environmental SpecificationsOperating Temperature-40° to 55°
Waterproof LevelIP65
Cooling MethodNatural cooling
