BQX-FK02

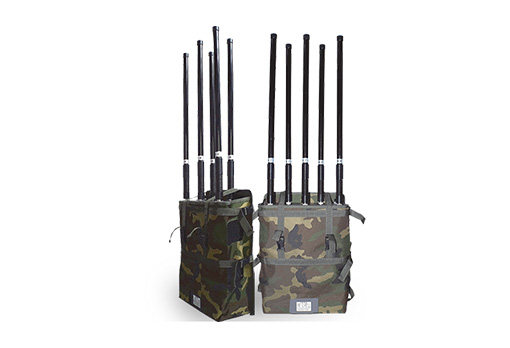

• Knapsack frequency jammer (AB pack)
• Provides full-frequency seamless coverage, with point-to-point frequency and channel setting capabilities, ensuring no interference blind spots. Users can adjust frequency range and power based on specific operational needs.
• Multifunctional device capable of acting as an explosive-disposal jammer, drone jammer, signal blocker, walkie-talkie blocker, WiFi blocker, Bluetooth blocker, and broadcast blocker.
• Equipped with 13 independent channels for transmitting interference signals, delivering a total power output of over 200W. Channels can be selectively activated or deactivated to meet situational demands.
• Compact knapsack design with integrated modular functionality, allowing for flexible use, quick assembly, and rapid maintenance.
• Dual-mode power supply system supporting both AC power and internal/external battery sources. The system can be expanded with additional power, modules, or network configurations as required.
• Designed for portability and ease of use, making it suitable for various environments and operational scenarios.
SZMID - BQX-FK02: Advanced Knapsack Frequency Interference System for Specialized Operations
The SZMID BQX-FK02 is an advanced, portable frequency jammer designed for use in challenging environments where traditional jamming equipment is impractical, such as confined spaces or areas without access to a power supply. Leveraging cutting-edge digital radio technologies, the system integrates electronic countermeasures, digital signal processing, power amplification, and specialized antenna design, providing a comprehensive solution for countering remote-controlled improvised explosive devices (RCIEDs), technical monitoring, hostage rescue operations, and other specialized tasks. The BQX-FK02 is a modern tool in the field of electronic warfare, meeting the operational requirements of public security, armed police, and military personnel engaged in riot control, counter-terrorism, bomb disposal, and technical investigations.
This knapsack jammer is lightweight and compact, making it ideal for individual soldiers in the field. Despite its small size, the system offers moderate transmission power with minimal radiation exposure to field operators. The device's directional transmission capabilities are particularly suited for precise explosive ordnance disposal (EOD) operations within small, targeted areas. With intelligent control and a one-touch operation system, the BQX-FK02 offers ease of use and efficiency in high-stress scenarios.
The system employs tone modulation interference, increasing the coverage range without increasing power consumption. Its flexible design allows for easy adjustments to frequency and power settings by swapping modules, ensuring adaptability to various operational requirements. The modular structure supports quick disassembly and reassembly, facilitating rapid maintenance and system updates.
The BQX-FK02 utilizes components from leading semiconductor manufacturers, ensuring both stability and advanced functionality. The system operates on a dual power supply system, capable of using both AC power and internal or external battery packs, ensuring uninterrupted operation across diverse environments.
The system's interference spectrum is meticulously segmented based on current wireless frequency use, allowing targeted jamming of remote-control devices while maintaining the integrity of critical communication channels, such as aviation, public safety, and broadcast frequencies. It effectively blocks signals across multiple modulation modes (AM, FM, PM, ASK, FSM, PSK), rendering remote-control devices inoperable by disrupting their ability to receive or process signals.
With built-in protection features, the system is safeguarded against no-load, short-circuit, undervoltage, overvoltage, and overload conditions. It is also designed to ensure user safety, adhering to national electromagnetic radiation protection standards. The sophisticated design and modular structure of the BQX-FK02 make it a highly versatile and reliable tool for modern electronic warfare and counter-terrorism efforts.
Product Model | BQX-FK02 EOD Equipment |
Frequency Ranges | Module Specifications |
Module 1 | 20MHz-130MHz |
Module 2 | 130MHz-300MHz |
Module 3 | 300MHz-500MHz |
Module 4 | 500MHz-800MHz |
Module 5 | 800MHz-900MHz |
Module 6 | 900MHz-1000MHz |
Module 7 | 1000MHz-1800MHz |
Module 8 | 1800MHz-1950MHz |
Module 9 | 1950MHz-2100MHz |
Module 10 | 2100MHz-2300MHz |
Module 11 | 2300MHz-2500MHz |
Module 12 | 2500MHz-2700MHz |
Module 13 | 5725MHz-5825MHz |
Total Power | 200W |
Operating Environment | Specifications |
Operating Temperature | -30℃ to +65℃ |
Weight | 20kg * 2 |
Relative Humidity | ≤80% RH |
Dimensions | 410×360×150mm |
Antenna Type | Directional: High frequency antenna (800-2700MHz), (5725-5825MHz) |
Omnidirectional: Low frequency antenna (20-800MHz) | |
Power Source | Built-in Lithium-ion Battery |
Power Consumption | MAX 1700W |
Power Adaptability | AC 220V mains power / Built-in DC 26-28V |
DC Input Current | 40Amps @ 28VDC |
Operational Requirements | Specifications |
MTBF | ≥1000 hours |
MTTR | ≤1 hour |
Operating Methods | Sweep, comb spectrum, and direct sequence spread spectrum |
Interference Style | Band blocking interference, sweep interference |
Operating Modes | Full spectrum and segmented spectrum modes for specific events |
Activation | Connect antenna, power on, and start switch |
